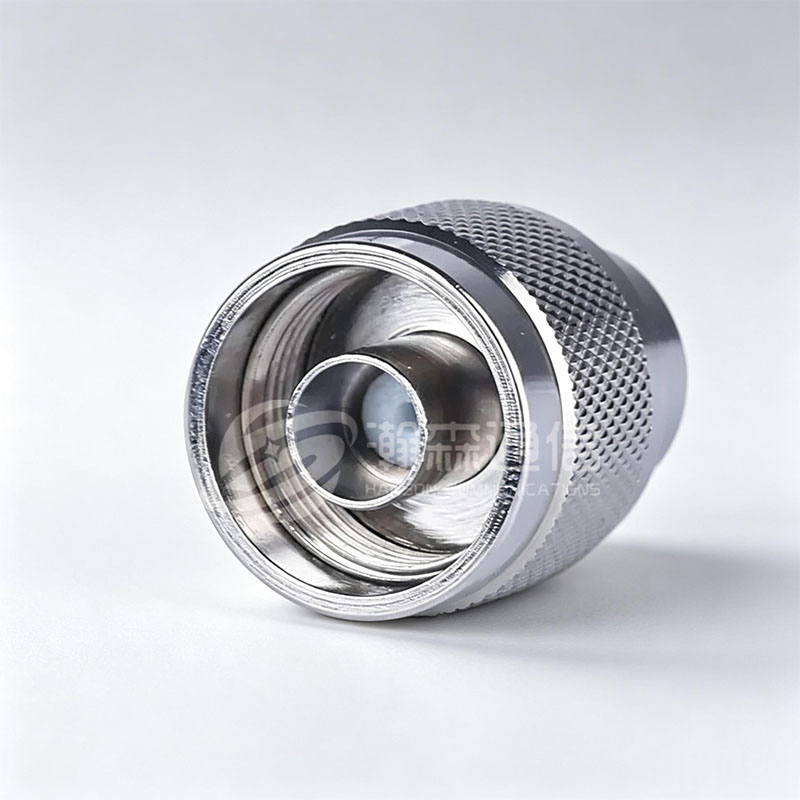

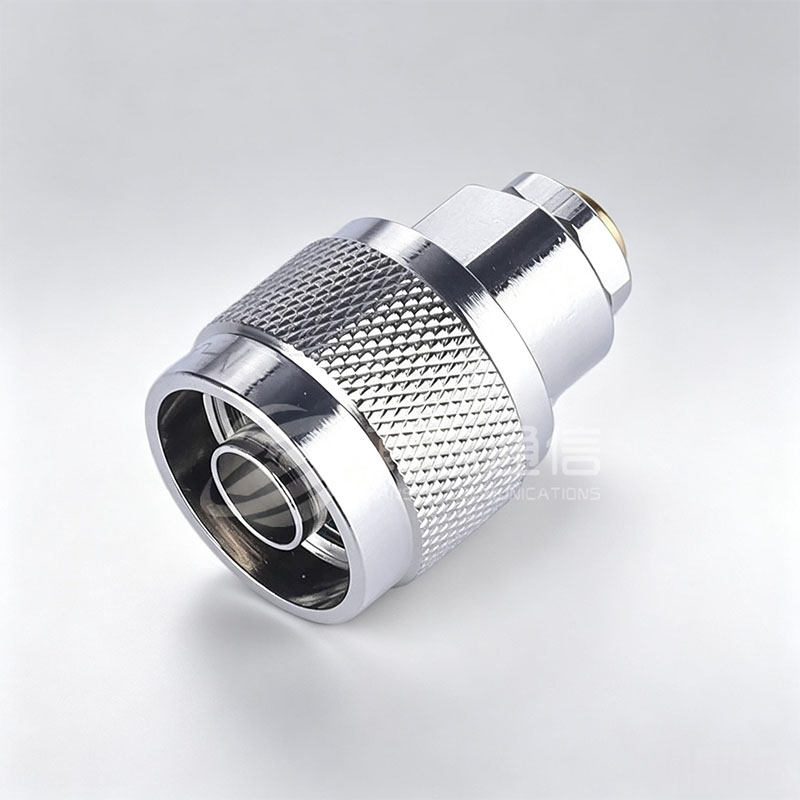

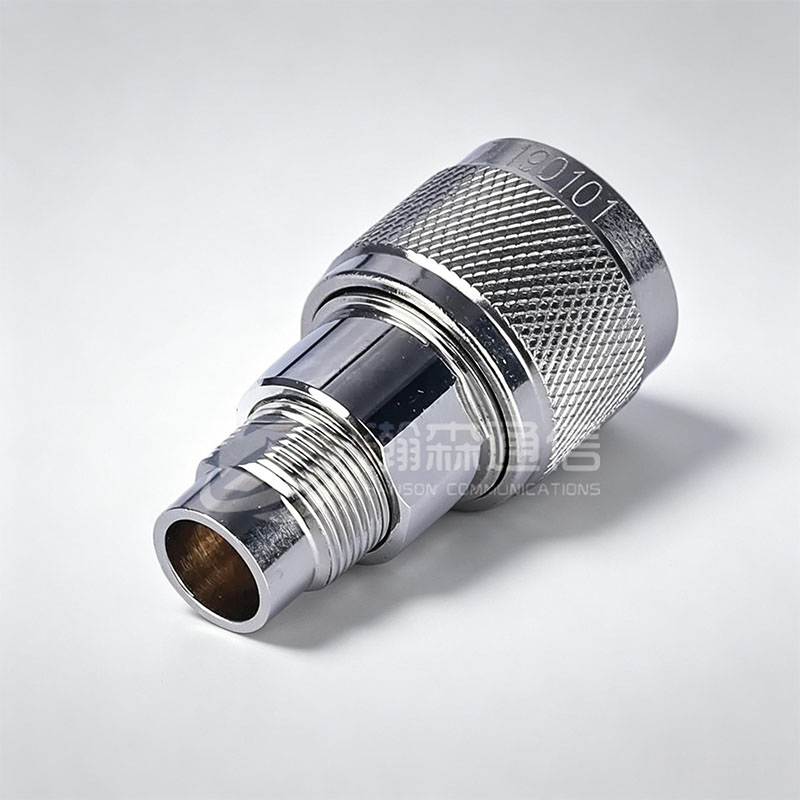

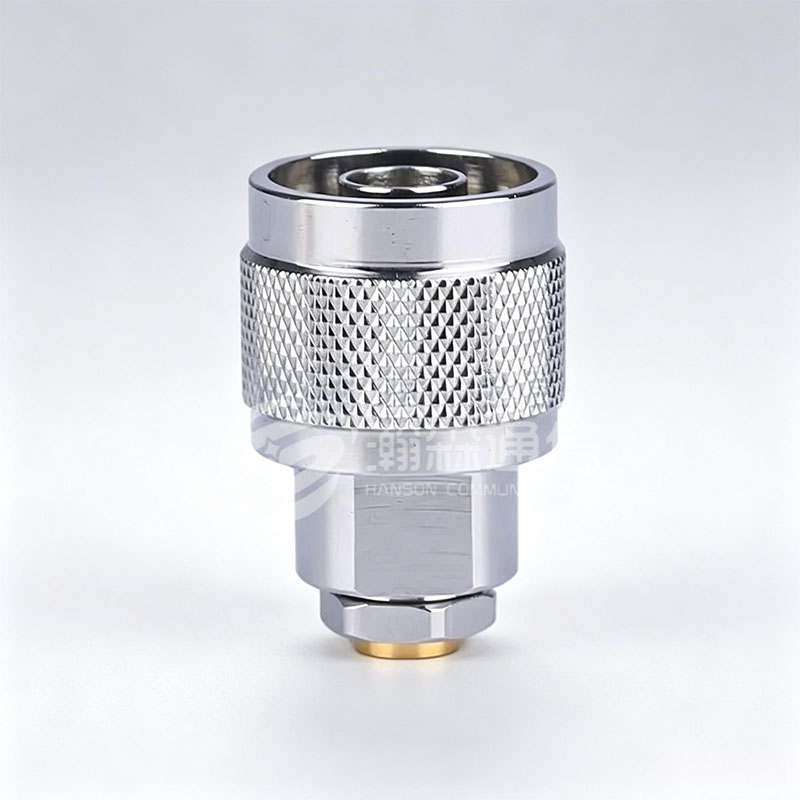

N-type RF Coaxial Connector

Description:

The N-type series RF coaxial connector is a RF coaxial connector with a threaded connection mechanism developed and produced in accordance with the US military standard MIL-C-39012. It has the characteristics of wide bandwidth, good shock resistance, high reliability, and excellent performance, and is widely used in microwave communications and measurement systems. The characteristic impedance of the N-type series RF coaxial connector produced by our factory is divided into two types: 50Ω and 75Ω.

Parameter:

Main Technical Specifications:
◆ Characteristic Impedance: 50Ω/75Ω
◆ Frequency Range: DC-18GHz(50Ω)/DC-3GHz(75Ω)
◆ Insulation Resistance: ≥5000MΩ
◆ Dielectric Withstand Voltage: 1500V(rms)
◆ Voltage Standing Wave Ratio (VSWR): ≤1.30
◆ Mating Cycles: 500 times

Inquire

Dim
Ltr		 Inches (mm)
Min. Max.
A .336 (8.53) .344 (8.74)
B .316 (8.03) .320 (8.13)
C .356 (9.04) .362 (9.19)
D .187 (4.75) .207 (5.26)
E ------- .627 (15.93)
F .119 (3.02) .124 (3.15)
G .422 (10.72) -------
H .172 (4.37) .220 (5.59)
J .047 (1.19) .077 (1.96)
K .047 (1.19) .077 (1.96)
L .187 (4.75) .207 (5.26)
N .210 (5.33) -------

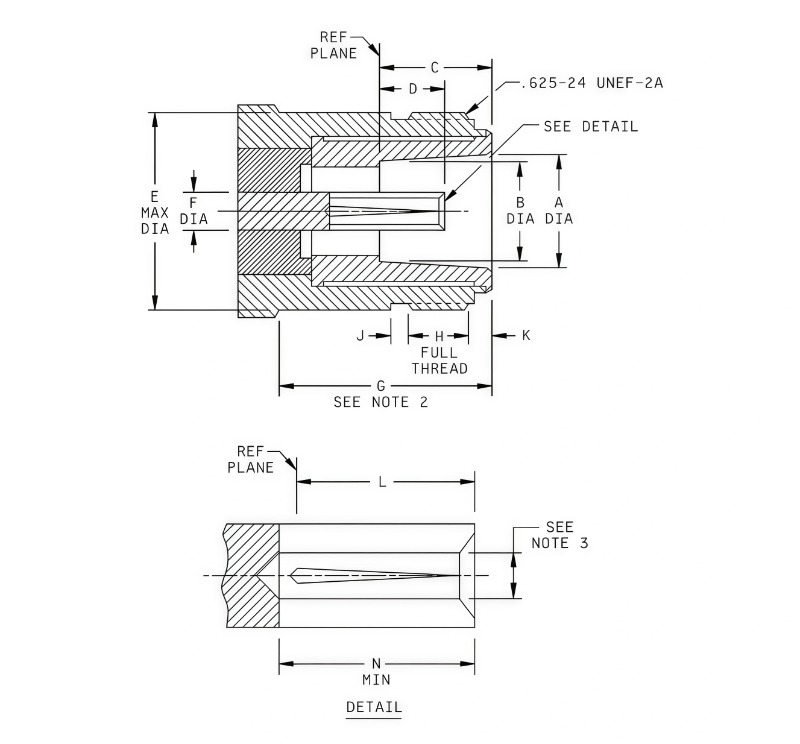

Notes:
1. This interface shall meet the gauge requirements as specified in
MIL-PRF-39o12/2.
2. Clearance for mating connector coupling nut.
3. To meet VSwR, mating characteristics, contact resistance and
connector durability when mated with a.063/.066 diameter pin.

Dim
Ltr		 Inches (mm)
Min. Max.
A 1.740 (44.20) 1.760 (44.70)
B 1.537 (39.04) 1.543 (39.19)
C 1.060 (26.92) 1.064 (27.03)
D .964 (24.49) .974 (24.74)
E .194 (4.93) .196 (4.98)
F .836 (21.23) .856 (21.74)
G .372 (9.45) .392 (9.96)
H .271 (6.88) .291 (7.39)
J 551 (14.00) .571 (14.50)
K .370 (9.40) .380 (9.65)
L .001 (0.03) .013 (0.33)

Notes:

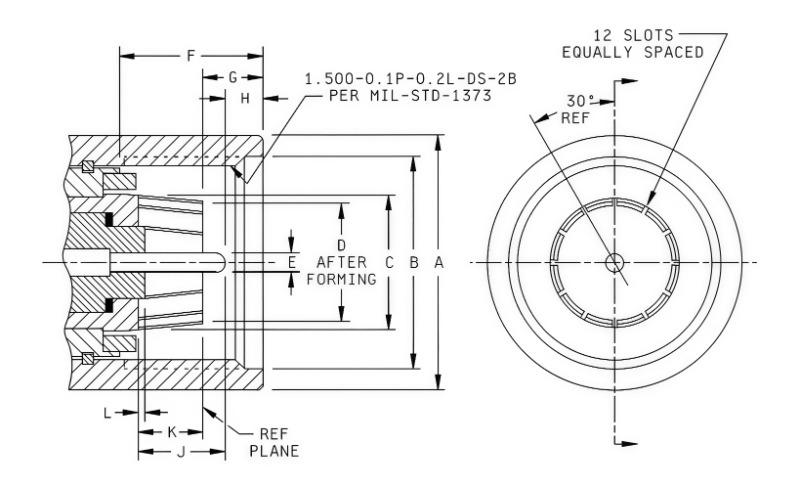

1. This interface shall meet the gauge requirements as specified in MIL-PRF-39012/44.

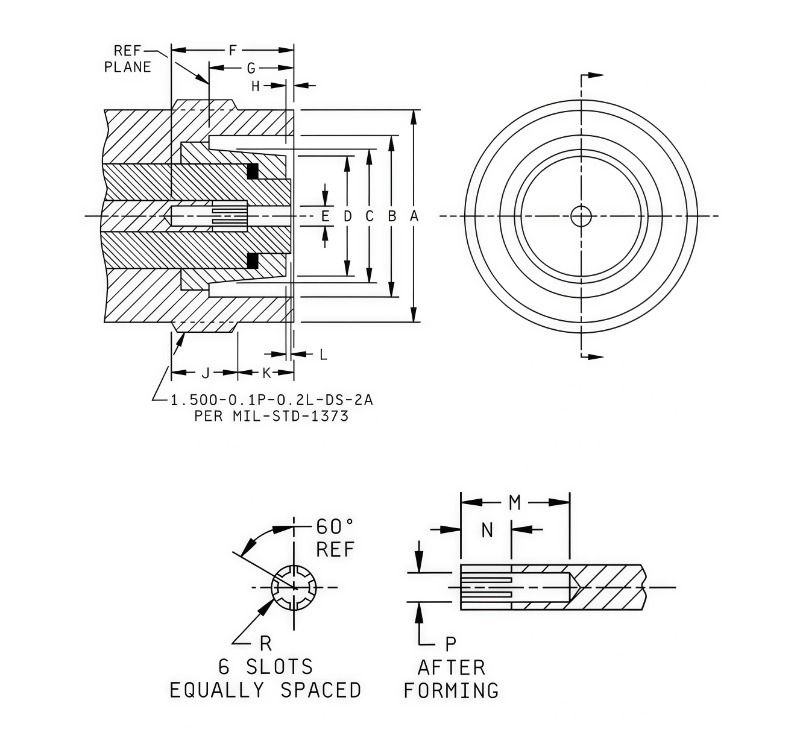

Dim
Ltr		 Inches (mm)
Min. Max.
A 1.404 (35.66) 1.408 (35.76)
B 1.100 (27.94) 1.120 (28.45)
C 1.998 (50.75) 1.002 (25.45)
D 936 (23.77) .940 (23.88)
E .191 (4.85) .195 (4.95)
F .763 (19.38) .783 (19.89)
G .465 (11.81) .485 (12.32)
H .062 (1.57) Reference
J .302 (7.67) .322 (8.18)
K .302 (7.67) .322 (8.18)
L .001 (0.03) .013 (0.33)
M .490 (12.45) .510 (12.95)
N .240 (6.10) ,260 (6.60)
P .187 (4.75) .189 (4.80)
R .014 (0.36) .018 (0.46)

Notes:
1. This interface shall meet the gauge requirements as specified in MIL-PRF-39012/45.

N SERIES

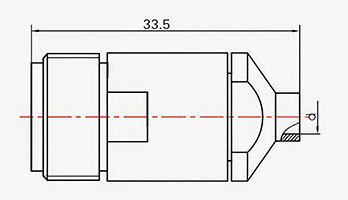

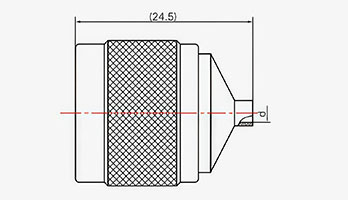

  • N-JB2
    N-JB2
    Model Cable type d
    N-JB2 SFT-50-2,670-086 Φ2.2
    N-JB3 SFT-50-3,670-141 Ф3.6

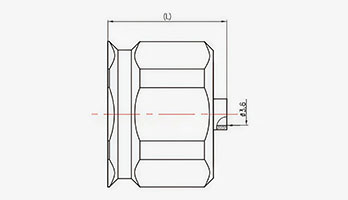

  • N-JB3-1
    N-JB3-1
    Model Cable type L
    N-JB3-1 SFT-50-3,670-141 17.6
    N-JB3A-1 SFT-50-3,670-141 16.5
  • N-KB3
    N-KB3
    Model Cable type
    N-KB3 SFT-50-3,670-141

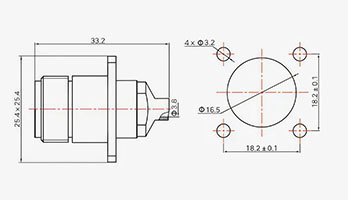

  • N-KFB3
    N-KFB3
    Model Cable type
    N-KFB3 SFT-50-3,670-141

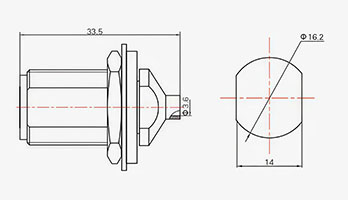

  • N-KYB3
    N-KYB3
    Model Cable type
    N-KYB3 SFT-50-3,670-141

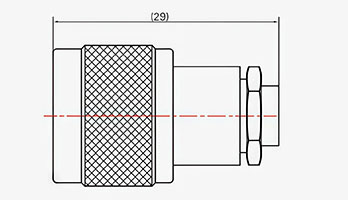

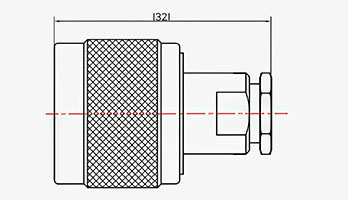

  • N-J3
    N-J3
    Model Cable type
    N-J3 SYV-50-2-1,RG316
    N-J4 SYV-50-2-2

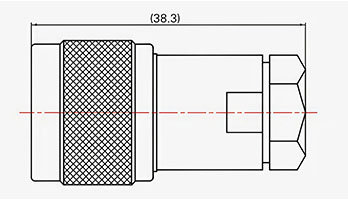

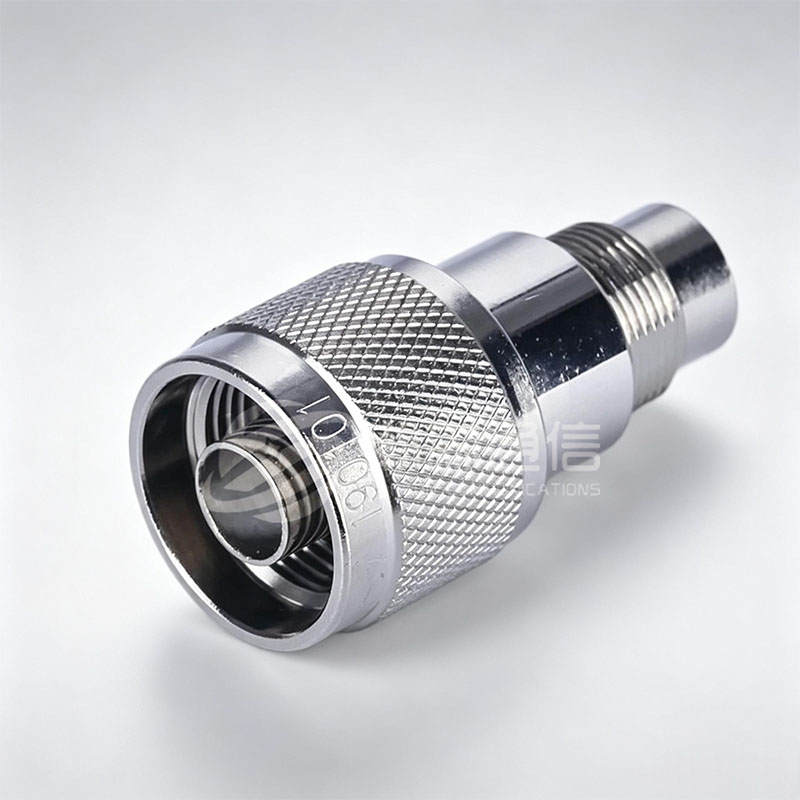

  • N-J5
    N-J5

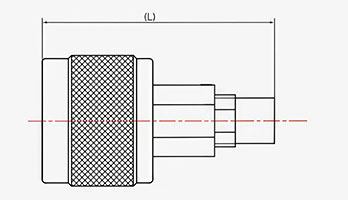

    Model Cable type L
    N-J5 SYV-50-3,RG142, SFCJ-50-3-51 33
    N-J5C SYV-50-3,RG142, SFCJ-50-3-51 33
    N-J7 SYV-50-5-1, SFCJ-50-5-51 36
    N-J10 SYV-50-7-1, SYV-50-7-2,SFCJ-50-7-51 36

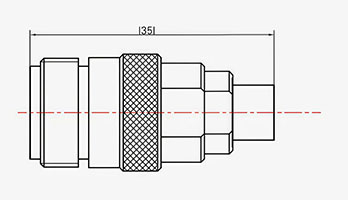

  • N-J5.3
    N-J5.3
    Model Cable type
    N-J5.3 32055,205,GNB415

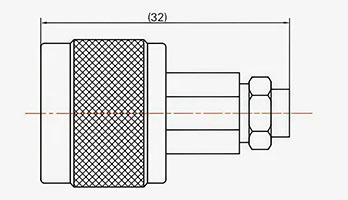

  • N-J311
    N-J311
    Model Cable type
    N-J311 FFB311A
  • N-J10-1
    N-J10-1
    Model Cable type
    N-J10-1 SFCJ-50-7-51

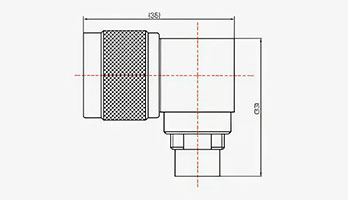

  • N-JW5
    N-JW5
    Model Cable type
    N-JW5 SFCJ-50-3-51,SYV-50-3-4,RG142
    N-JW7 SFCJ-50-5-51,SYV-50-5-1
    N-JW10 SFCJ-50-7-51,SYV-50-7-2

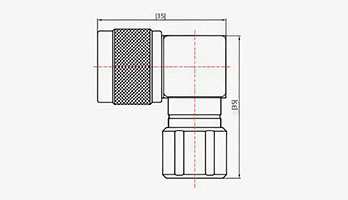

  • N-JW8A
    N-JW8A
    Model Cable type
    N-JW8A FFB311A,SYV-50-5
    N-JW12A SYV-75-3
    N-JW13A SYV-75-5
  • N-K3
    N-K3
    Model Cable type
    N-K3 SYV-50-2-1,RG316

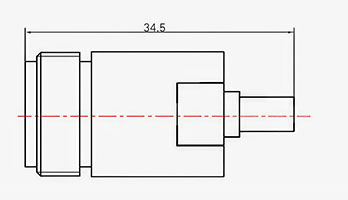

  • N-K5
    N-K5
    Model Cable type L
    N-K5 SYV-50-3,RG142, SFCJ-50-3-51 36
    N-K7 SYV-50-5-1,SFCJ-50-5-51 38
    N-K10 SYV-50-7-1,SFCJ-50-7-51 38

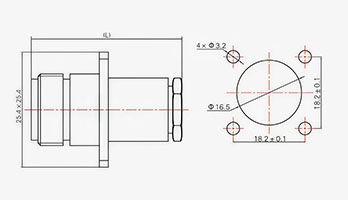

  • N-KF5
    N-KF5
    Model Cable type L
    N-KF5 SYV-50-3,RG142,SFCJ-50-3-51 36
    N-KF7 SYV-50-5-1,SFCJ-50-5-51 38
    N-KF10 SYV-50-7-1,SFCJ-50-7-51 38
  • N-KF3A
    N-KF3A
    Model Cable type L
    N-KF3A SYV-50-2-1,RG316 33
    N-KF5A SYV-50-3-4,RG142 42
  • N-KY3Y
    N-KY3Y
    Model Cable type
    N-KY3Y SYV-50-2-1,RG316

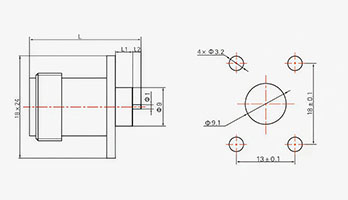

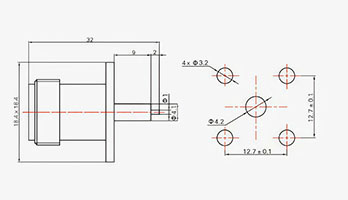

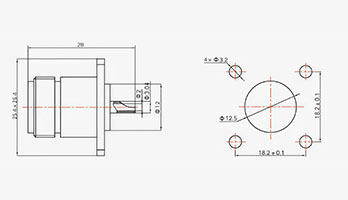

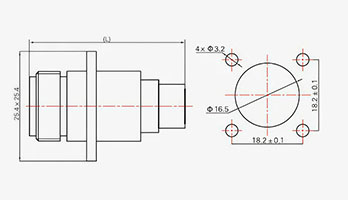

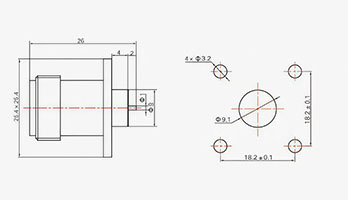

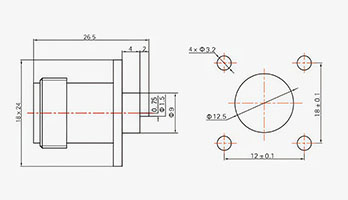

  • N-KFD
    N-KFD
    Model L L1 L2
    KFD 26 4 2
    KFD2 31 6 5
    KFD15 30 6 4
    KFD16 28.5 6 2.5
    KFD17 28 6 2
    KFD18 29 5 4
    KFD19 29 4 5
    KFD20 33 4 9

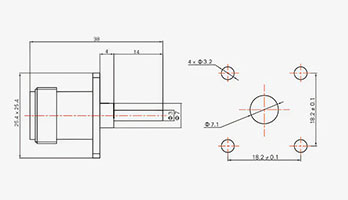

  • N-KF
    N-KF

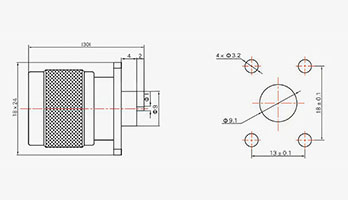

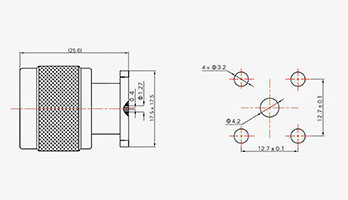

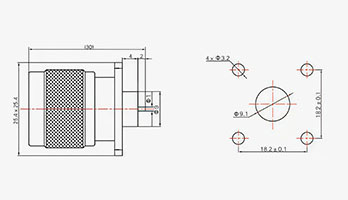

  • N-JFD1
    N-JFD1
  • N-JFD2
    N-JFD2
  • N-JFD3
    N-JFD3
  • N-JFD23
    N-JFD23

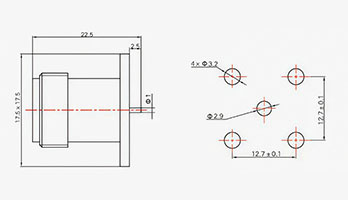

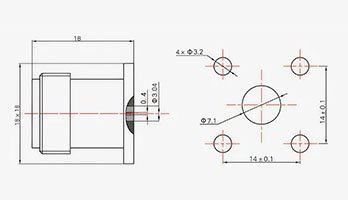

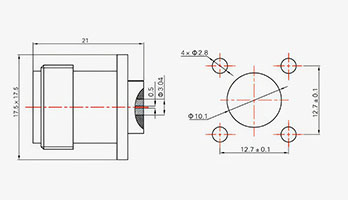

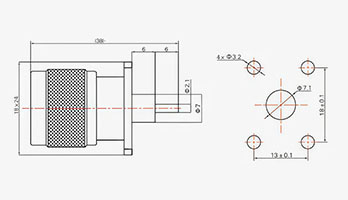

  • N-KFD1
    N-KFD1
  • N-KFD7
    N-KFD7
  • N-KFD11
    N-KFD11
  • N-KFD50
    N-KFD50

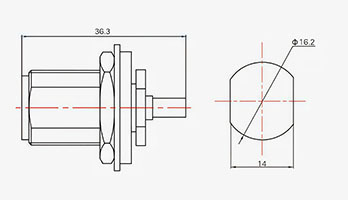

  • N-KFD-Z
    N-KFD-Z
  • N-KFD9
    N-KFD9
  • N-KFD14
    N-KFD14
