SMPM Hermetically Sealed Connector
Description:
SMPM (SubMiniature Push-on Micro) sealed connector is a miniaturized RF connector with full escapement, semi-escapement, and light hole, designed for high frequency, compact space, and lightweight applications. It is a push-on connector, commonly used in communications and electronic equipment that require low weight, high reliability, and small size. SMPM connectors have high signal transmission quality and can provide good electrical performance.
Basic structure:

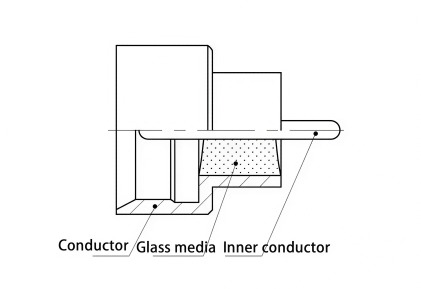

SMPM-J type air-sealed RF coaxial connector consists of three parts: outer conductor, glass medium and inner conductor, the basic structure is shown in the figure below:
Main Technical Parameters:
| Electrical Characteristics | ||||
| Characteristic impedance | 50Ω | Frequency Range | DC~40GHz | |
| Dielectric Withstanding Voltage | 500Vrms | Insulation resistance | 2000MΩ | |
| Voltage VSWR | <1.4 | Insertion Loss | ≤0.05 √f dB(GHz) | |
| Material and mechanical, environmental properties | ||||
| Casing | Lavable Alloy/Gold Plated | Pins | Lavable alloy/gold plated | |
| Insulation medium | Glass | Connector Durability | Full Escapement | 100 times |
| Leakage rate | ≤1.01325×10⁹Pa ·m³/s | optical hole | 1000 times | |
| Operating temperature | -65℃~+165℃ | |||
Interface Size:
SMPM-J type air-sealed RF coaxial connectors have two interface forms: full escapement and bare hole. When model naming, F indicates full escapement and
S means light hole. The interface dimensions are divided into standard interface dimensions and short interface dimensions, both of which are intermateable with SMPM-K type plugs.

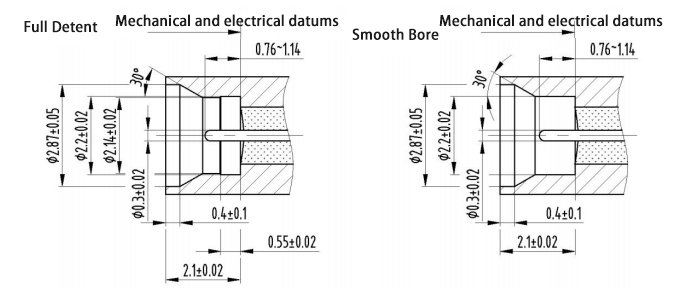

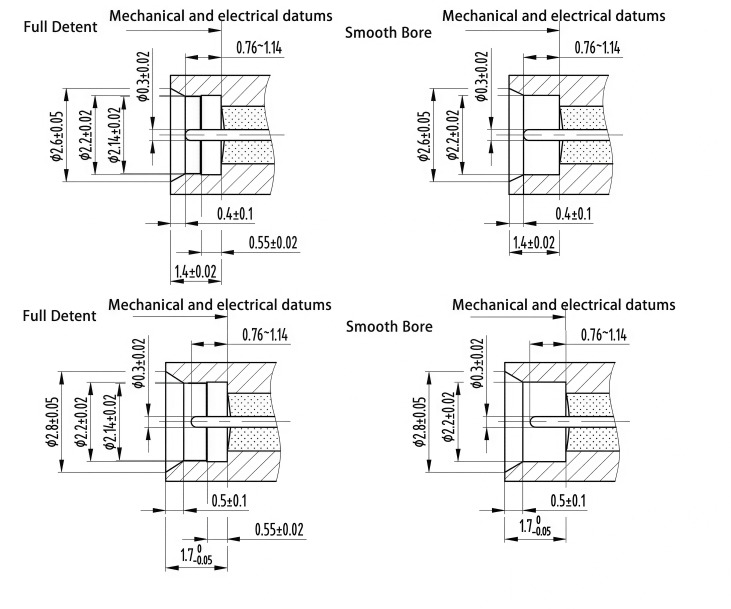

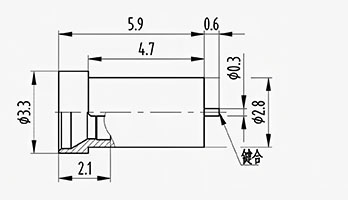

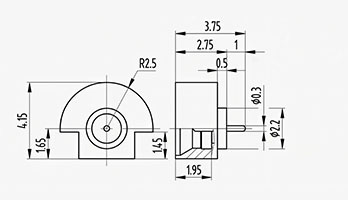

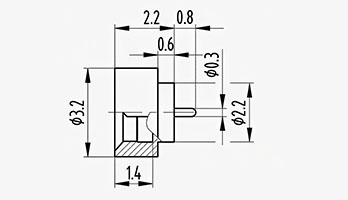

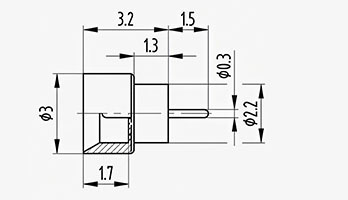

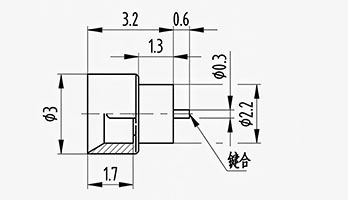

Standard interface size:

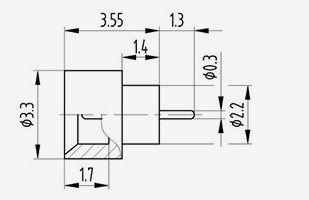

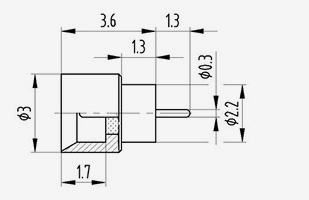

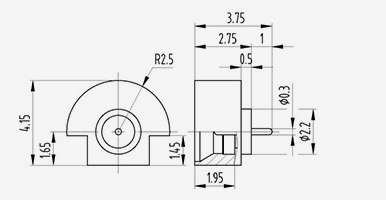

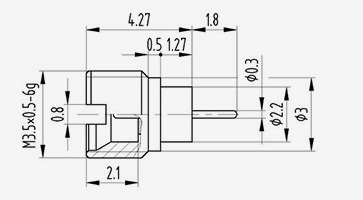

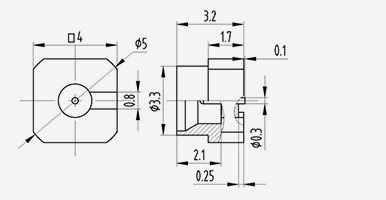

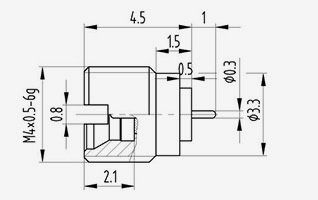

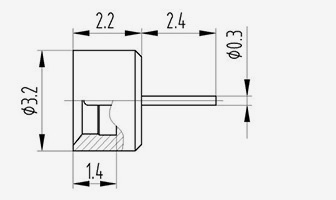

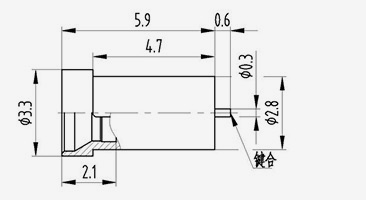

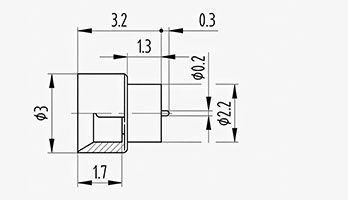

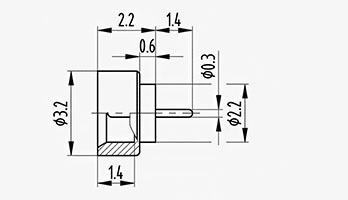

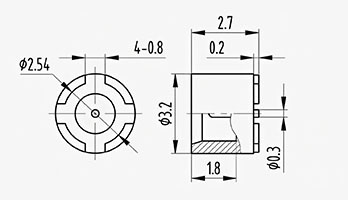

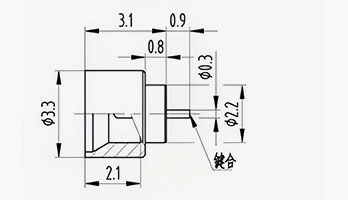

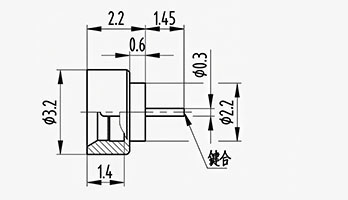

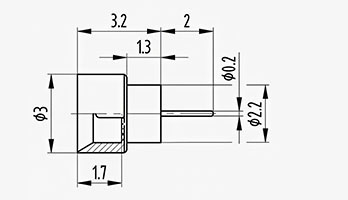

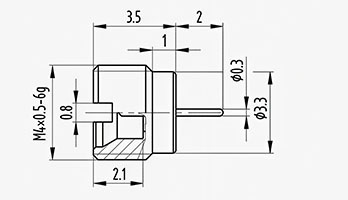

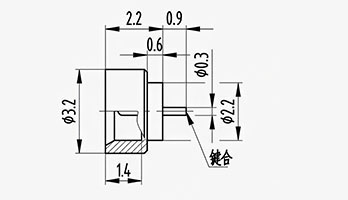

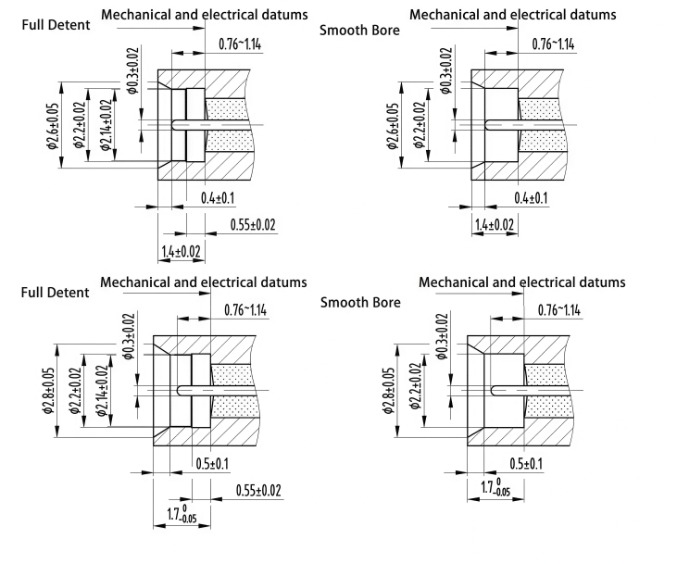

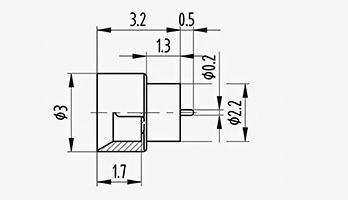

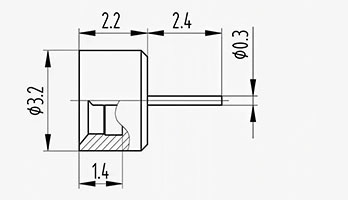

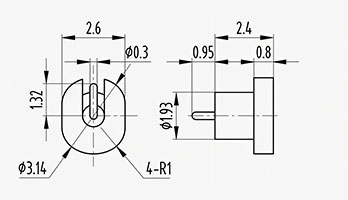

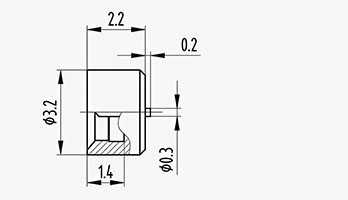

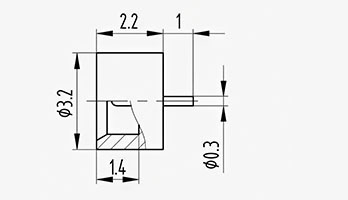

Short interface dimensions:

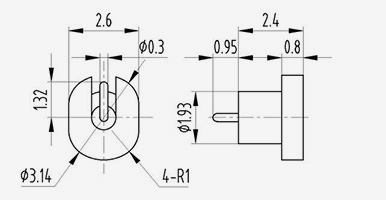

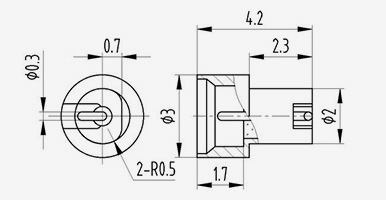

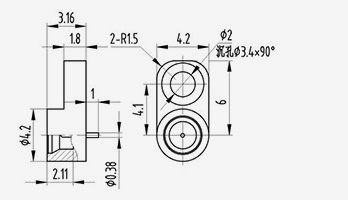

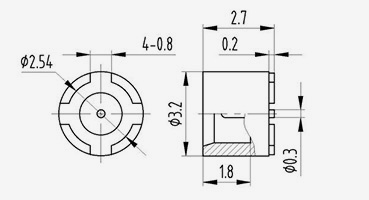

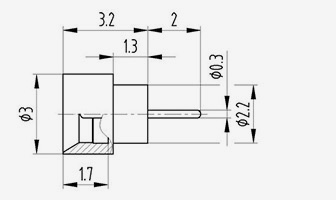

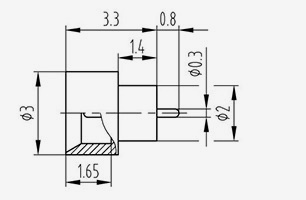

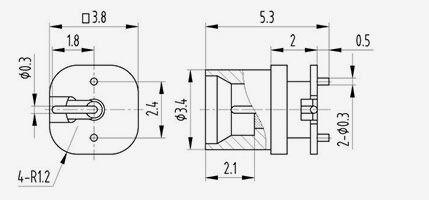

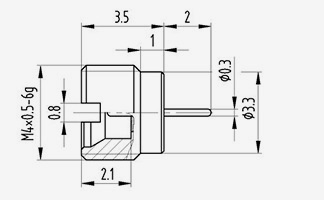

SMPM SERIES
-

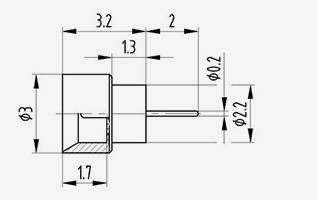

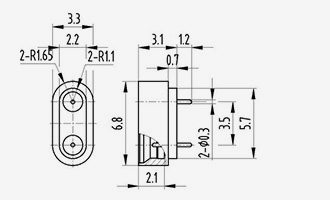

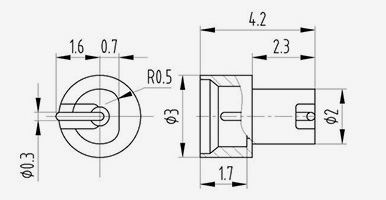

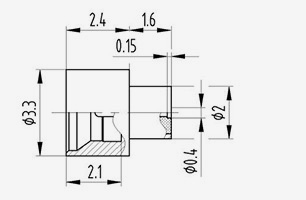

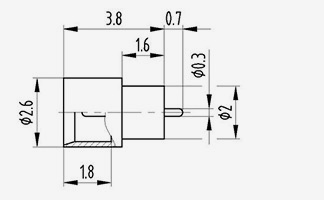

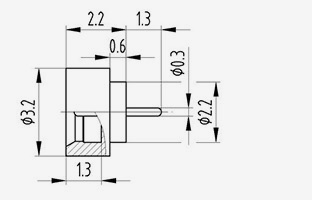

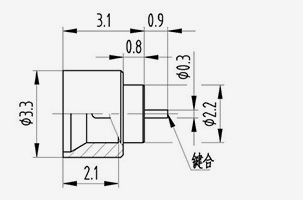

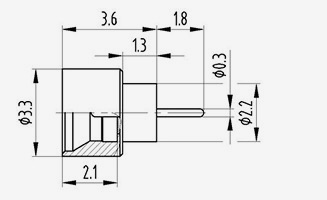

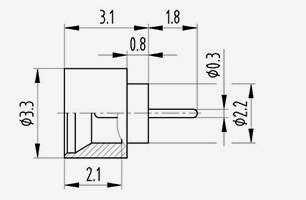

SMPM(M)-JYD3S
Model Remarks SMPM(M)-JYD3S Smooth Bore -

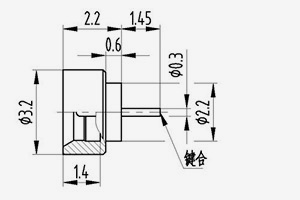

SMPM(M)-JYD5S
Model Remarks SMPM(M)-JYD5S Smooth Bore -

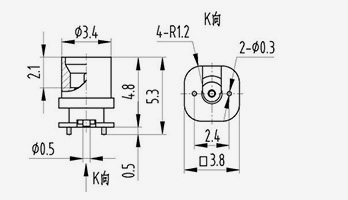

SMPM(M)-JYD8F
Model Remarks SMPM(M)-JYD8F Full Detent -

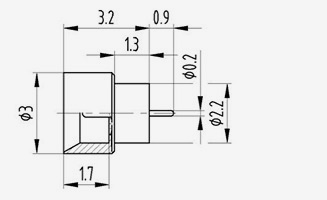

SMPM(M)-JYD10F
Model Remarks SMPM(M)-JYD10F Full Detent -

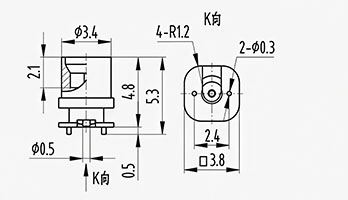

SMPM(M)-JYD12S
Model Remarks SMPM(M)-JYD12S Smooth Bore -

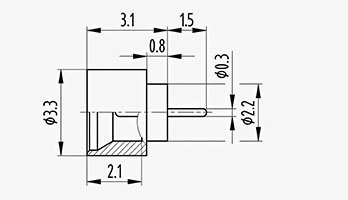

SMPM(M)-JYD13F
Model Remarks SMPM(M)-JYD13F Full Detent -

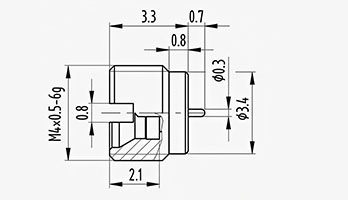

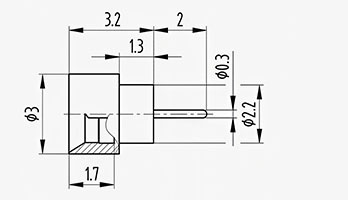

SMPM(M)-JYD14F
Model Remarks SMPM(M)-JYD14F Full Detent -

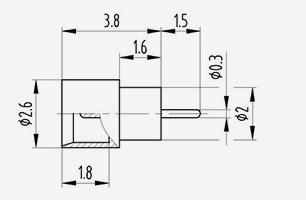

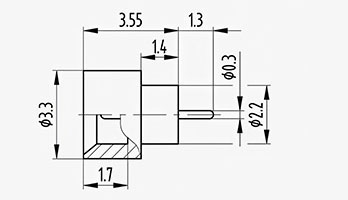

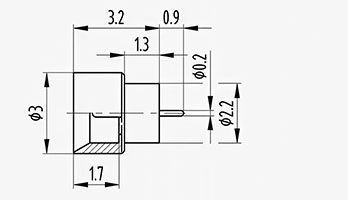

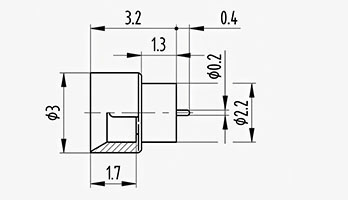

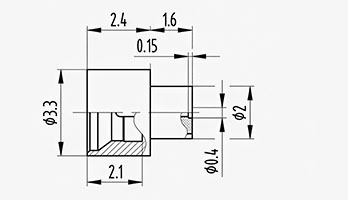

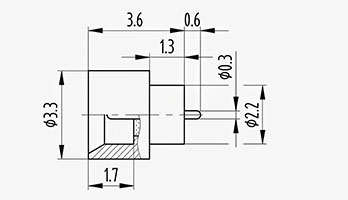

SMPM(M)-JYD15F
Model Remarks SMPM(M)-JYD15F Full Detent -

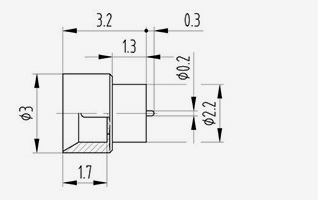

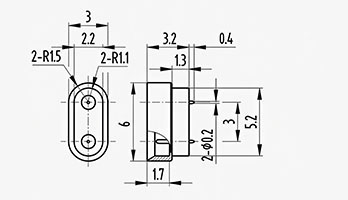

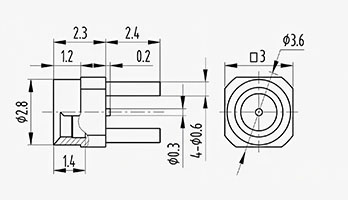

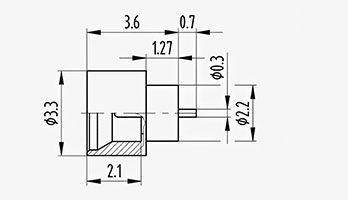

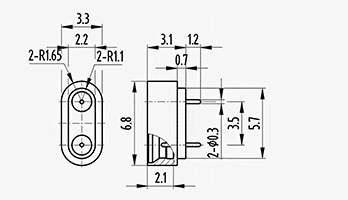

SMPM(M)-JYD16S
Model Remarks SMPM(M)-JYD16S Smooth Bore -

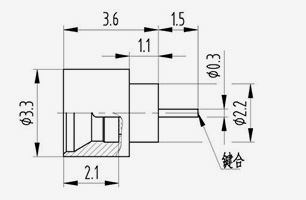

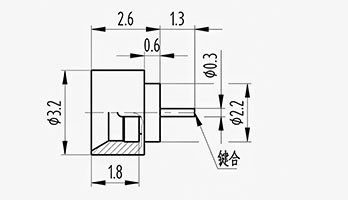

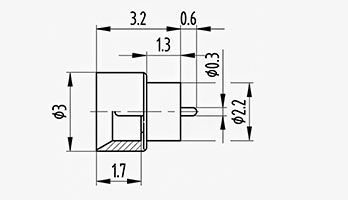

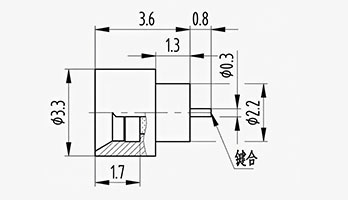

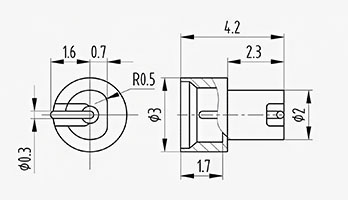

SMPM(M)-JYD17S
Model Remarks SMPM(M)-JYD17S Smooth Bore -

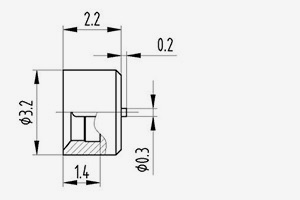

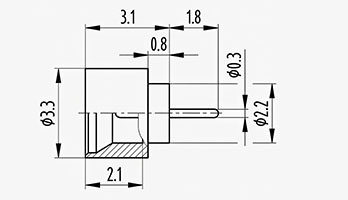

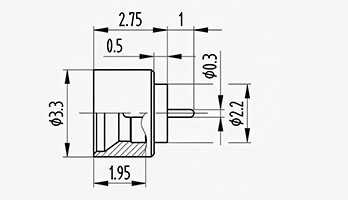

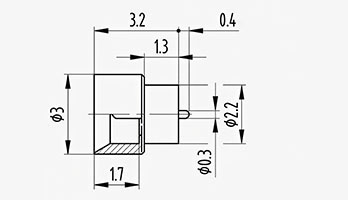

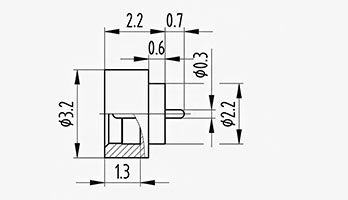

SMPM(M)-JYD18S
Model Remarks SMPM(M)-JYD18S Smooth Bore -

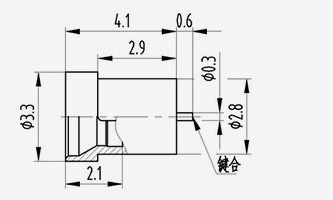

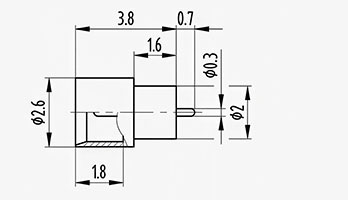

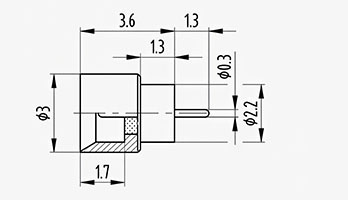

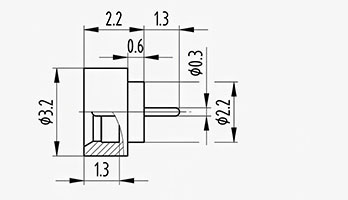

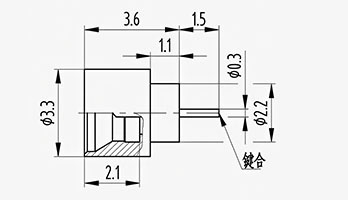

SMPM(M)-JYD19S
Model Remarks SMPM(M)-JYD19S Smooth Bore -

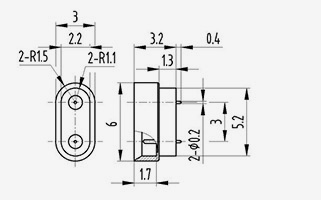

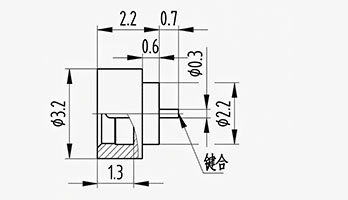

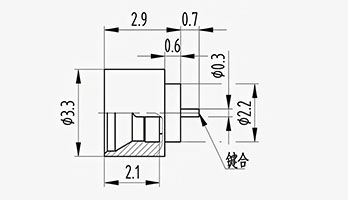

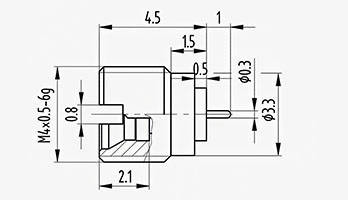

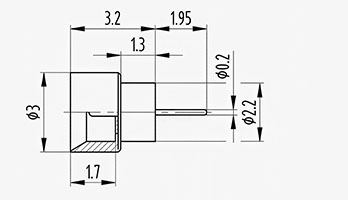

SMPM(M)-JYD20F
Model Remarks SMPM(M)-JYD20F Full Detent -

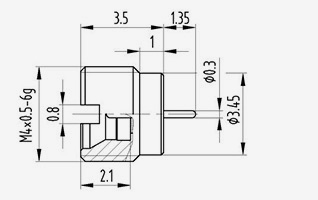

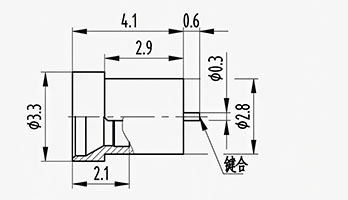

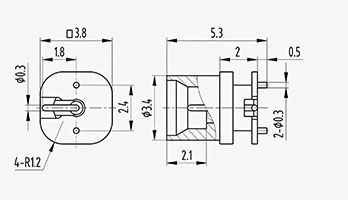

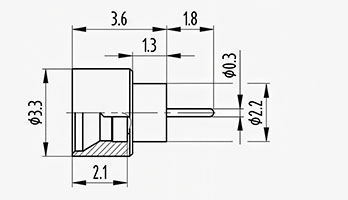

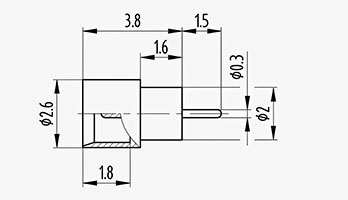

SMPM(M)-JYD21S
Model Remarks SMPM(M)-JYD21S Smooth Bore -

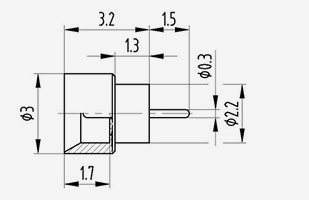

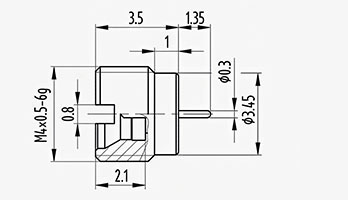

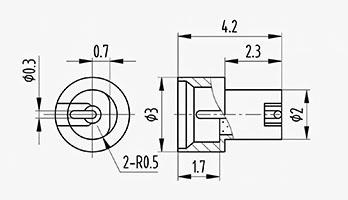

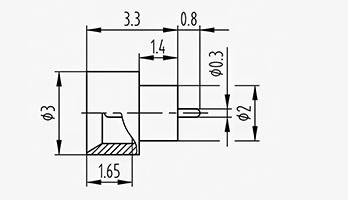

SMPM(M)-JYD22F
Model Remarks SMPM(M)-JYD22F Full Detent -
SMPM(M)-JYD23S
Model Remarks SMPM(M)-JYD23S Smooth Bore -
SMPM(M)-JYD24F
Model Remarks SMPM(M)-JYD24F Full Detent -
SMPM(M)-JYD25F
Model Remarks SMPM(M)-JYD25F Full Detent -
SMPM(M)-JYD26F
Model Remarks SMPM(M)-JYD26F Full Detent -
SMPM(M)-JYD27S
Model Remarks SMPM(M)-JYD27S Smooth Bore -
SMPM(M)-JYD28S
Model Remarks SMPM(M)-JYD28S Smooth Bore -
SMPM(M)-JYD29F
Model Remarks SMPM(M)-JYD29F Full Detent -
SMPM(M)-JYD30S
Model Remarks SMPM(M)-JYD30S Smooth Bore -
SMPM(M)-JYD31F
Model Remarks SMPM(M)-JYD31F Full Detent -
SMPM(M)-JYD32F
Model Remarks SMPM(M)-JYD32F Full Detent -
SMPM(M)-JYD33S
Model Remarks SMPM(M)-JYD33S Smooth Bore -
SMPM(M)-JYD34S
Model Remarks SMPM(M)-JYD34S Smooth Bore -
SMPM(M)-JYD35S
Model Remarks SMPM(M)-JYD35S Smooth Bore -
SMPM(M)-JYD36S
Model Remarks SMPM(M)-JYD36S Smooth Bore -
SMPM(M)-JYD37S
Model Remarks SMPM(M)-JYD37S Smooth Bore -
SMPM(M)-JYD38S
Model Remarks SMPM(M)-JYD38S Smooth Bore -
SMPM(M)-JYD39S
Model Remarks SMPM(M)-JYD39S Smooth Bore -
SMPM(M)-JYD41S
Model Remarks SMPM(M)-JYD41S Smooth Bore -
SMPM(M)-JYD42S
Model Remarks SMPM(M)-JYD42S Smooth Bore -
SMPM(M)-JYD43F
Model Remarks SMPM(M)-JYD43F Full Detent -
SMPM(M)-JYD44F
Model Remarks SMPM(M)-JYD44F Full Detent -
SMPM(M)-JYD45S
Model Remarks SMPM(M)-JYD45S Smooth Bore -
SMPM(M)-JYD46S
Model Remarks SMPM(M)-JYD46S Smooth Bore -
SMPM(M)-JYD60F
Model Remarks SMPM(M)-JYD60F Full Detent -
SMPM(M)-JYD61F
Model Remarks SMPM(M)-JYD61F Full Detent -
SMPM(M)-JYD62F
Model Remarks SMPM(M)-JYD62F Full Detent -
SMPM(M)-JYD63S
Model Remarks SMPM(M)-JYD63S Smooth Bore -
SMPM(M)-JYD64S
Model Remarks SMPM(M)-JYD64S Smooth Bore -
SMPM(M)-JYD65S
Model Remarks SMPM(M)-JYD65S Smooth Bore -
SMPM(M)-JYD66S
Model Remarks SMPM(M)-JYD66S Smooth Bore -
SMPM(M)-JHD1S
Model Remarks SMPM(M)-JHD1S Smooth Bore -
SMPM(M)-JHD2F
Model Remarks SMPM(M)-JHD2F Full Detent -
SMPM(M)-JHD3F
Model Remarks SMPM(M)-JHD3F Full Detent -
SMPM(M)-JHD4F
Model Remarks SMPM(M)-JHD4F Full Detent -
SMPM(M)-JHD6F
Model Remarks SMPM(M)-JHD6F Full Detent -
SMPM(M)-JHD21F
Model Remarks SMPM(M)-JHD21F Full Detent -

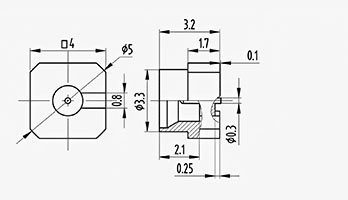

SMPM(M)-JFD1S
Model Remarks SMPM(M)-JFD1S Smooth Bore -
SMPM(M)-JWSD1S
Model Remarks SMPM(M)-JWSD1S Smooth Bore -
SMPM(M)-JWSD8
Model Remarks SMPM(M)-JWSD8 -
SMPM(M)-JWSD9S
Model Remarks SMPM(M)-JWSD9S Smooth Bore -
SMPM(M)-JWSD10S
Model Remarks SMPM(M)-JWSD10S Smooth Bore -
SMPM(M)-JSD1S
Model Remarks SMPM(M)-JSD1S Smooth Bore
