OEM SMP Hermetically Sealed Connector Supplier

Ningbo Hanson Communication Technology Co., Ltd. Home / Products / Hermetically Sealed Series / SMP Hermetically Sealed Connector

SMP Hermetically Sealed Connector

Description:

SMP-J type hermetic RF coaxial connector has the characteristics of hermetic packaging and can be packaged and welded on the tube shell or device panel. The shell and inner conductor of this product are made of Kovar alloy material, and the surface can be plated with hard gold or soft gold; the insulating medium is made of glass sintered at high temperature, and the dielectric constant is about 4. It has the advantages of small size, light weight, hermetic sealing, high reliability, etc. It is mostly used in occasions with sealing requirements or special requirements on product volume and weight, and is suitable for intensive installation.

Inquire

Basic structure:

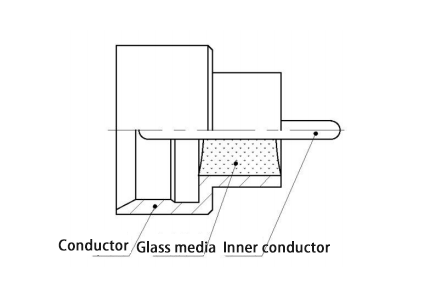

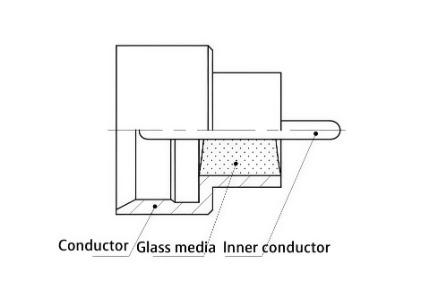

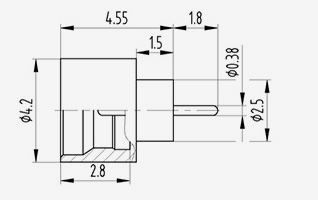

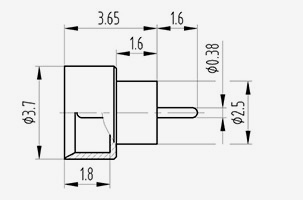

SMP-J type air-sealed RF coaxial connector usually consists of three parts: outer conductor, glass medium and inner conductor, and the basic structure is shown in the figure.

When the exposed part of the inner conductor of the product is connected by insertion or surface welding, the end face of the inner conductor can be produced as a spherical head; when the exposed part of the inner conductor of the product is connected by bonding, the end face of the inner conductor can be produced as a flat head or the side of the exposed part of the inner conductor can be milled.

Main technical parameters:

Electrical Characteristics
Characteristic impedance 50Ω Frequency Range DC~40GHz
Dielectric Withstanding Voltage 500Vrms Insulation resistance 2000MΩ
Voltage VSWR <1.4 Insertion Loss ≤0.05 √f dB(GHz)
Material and mechanical, environmental properties
Casing Lavable Alloy/Gold Plated Pins Plug Thorium Delegable Alloy Gold Plating
Insulation medium Glass Connector Durability Full Detent ≥100 times
Leakage rate ≤1.01325×10⁹Pa ·m³/s Limited Detent ≥500 times
Operating temperature -65℃~+165℃ Smooth Bore ≥1000 times

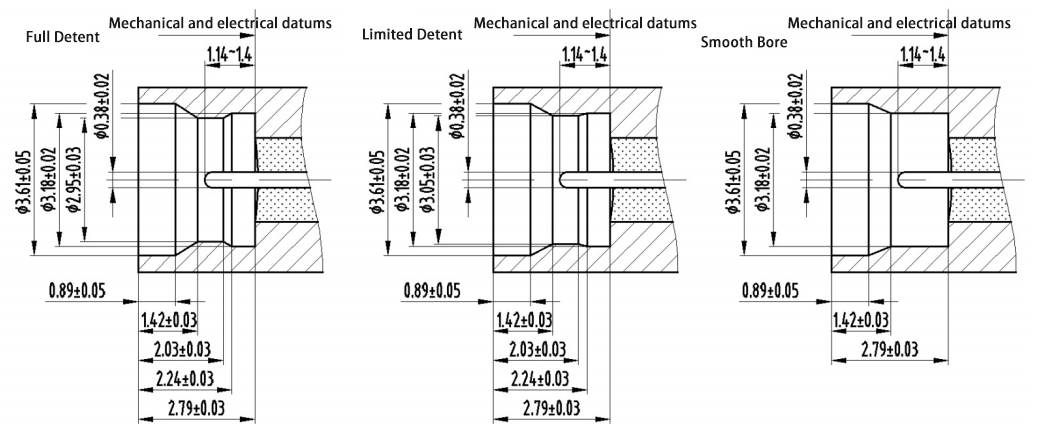

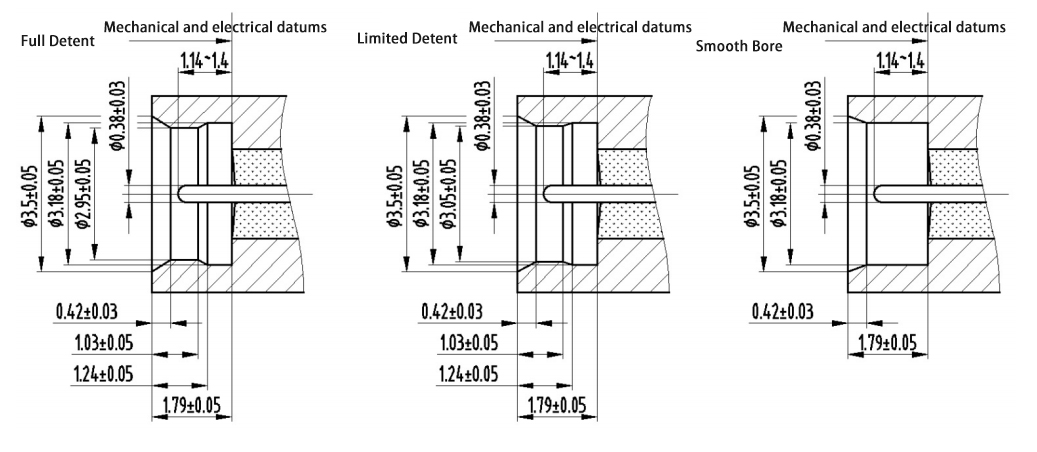

Interface Dimensions:

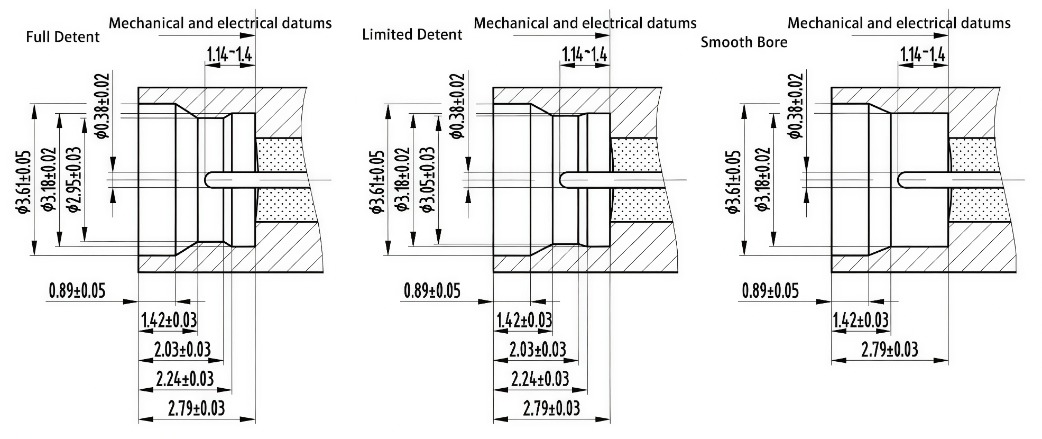

SMP-J type air-sealed RF coaxial connectors have three interface forms: full escapement, half escapement, and light hole. When naming the model, F means full escapement, L means half escapement, and S means light hole. The interface dimensions are divided into standard interface dimensions and short interface dimensions, both of which are intermateable with SMP-K type plugs.

Standard Interface Size：

Short interface size：

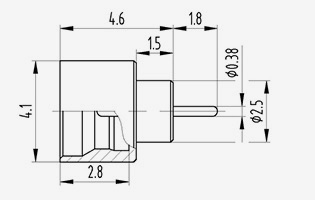

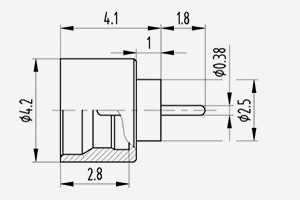

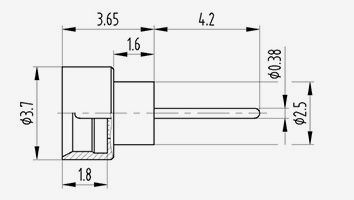

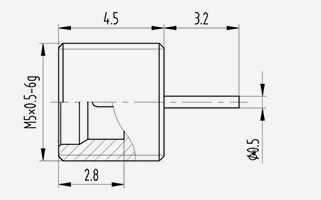

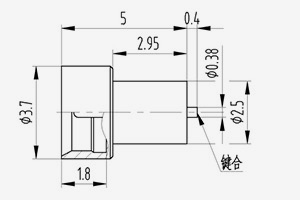

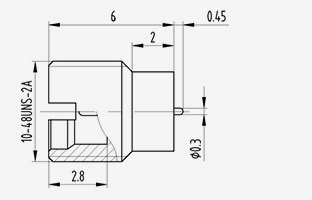

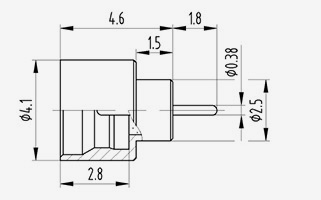

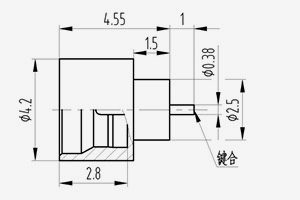

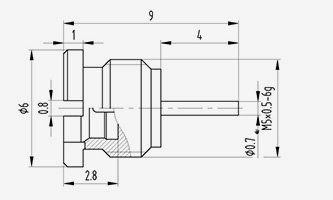

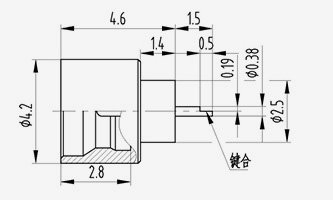

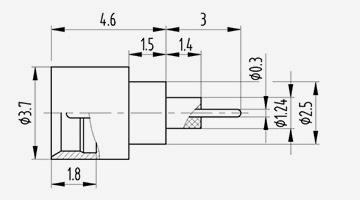

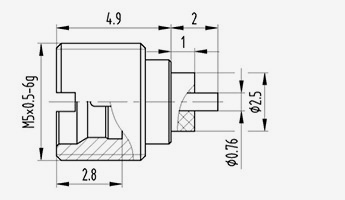

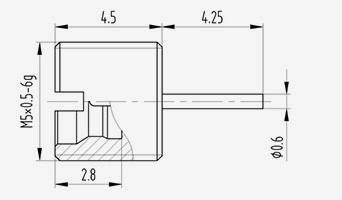

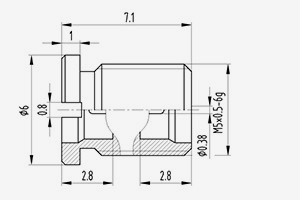

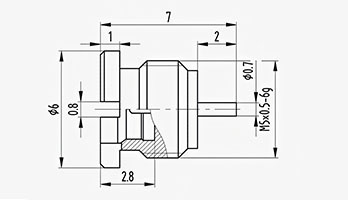

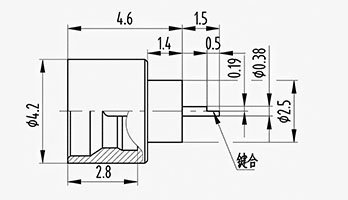

SMP SERIES

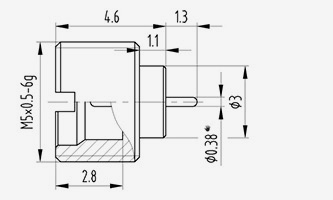

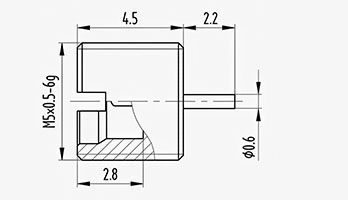

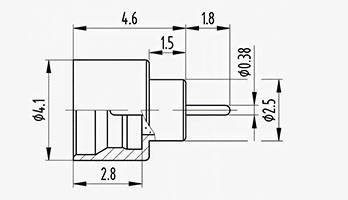

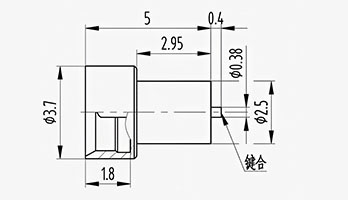

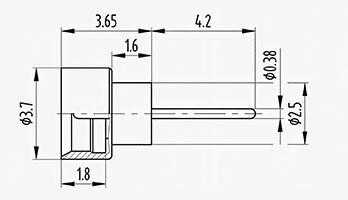

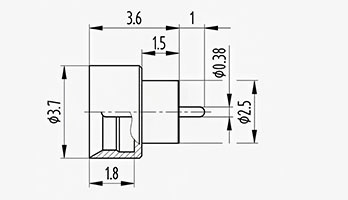

  • SMP(M)-JYD3S
    SMP(M)-JYD3S
    Model Remarks
    SMP(M)-JYD3S Smooth Bore

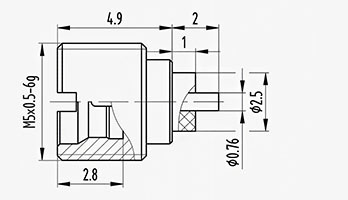

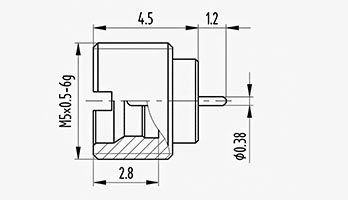

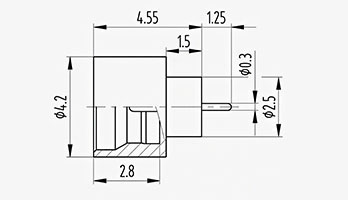

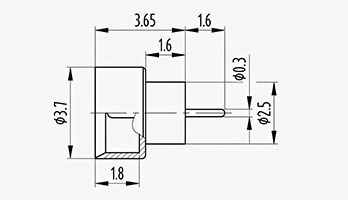

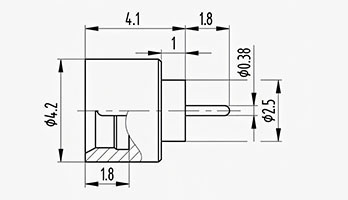

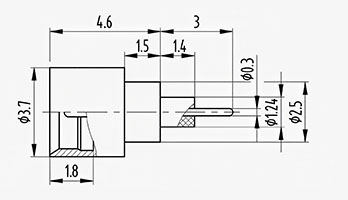

  • SMP(M)-JYD6L
    SMP(M)-JYD6L
    Model Remarks
    SMP(M)-JYD6L Limited Detent

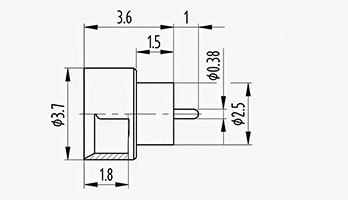

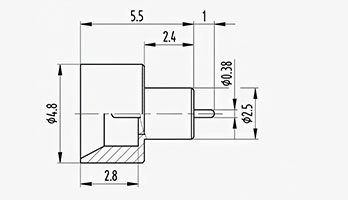

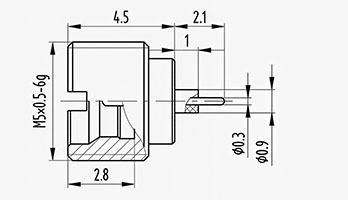

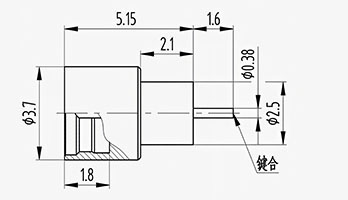

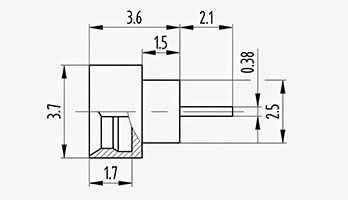

  • SMP(M)-JYD12L
    SMP(M)-JYD12L
    Model Remarks
    SMP(M)-JYD12L Full Detent

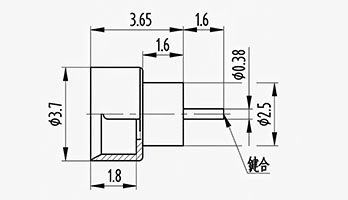

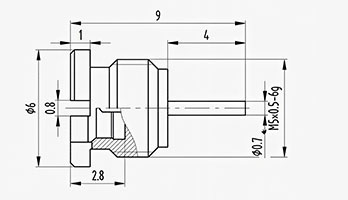

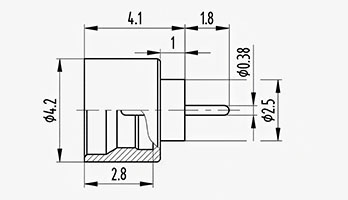

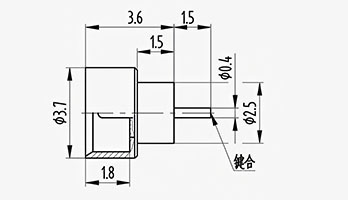

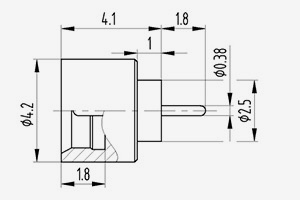

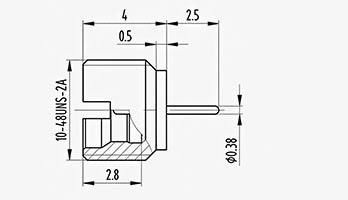

  • SMP(M)-JYD13F
    SMP(M)-JYD13F
    Model Remarks
    SMP(M)-JYD13F Full Detent

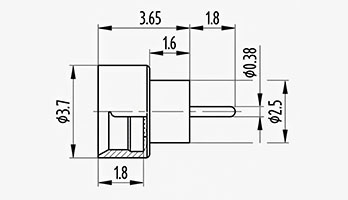

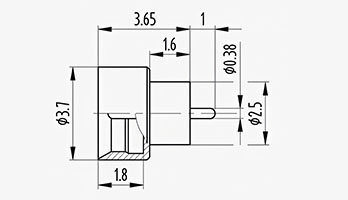

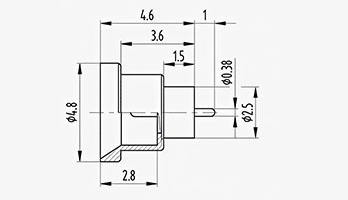

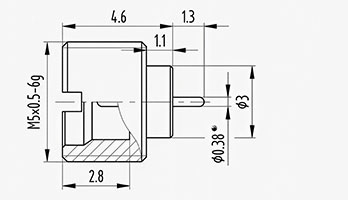

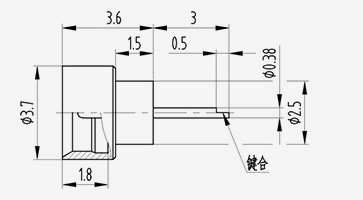

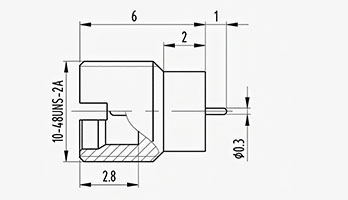

  • SMP(M)-JYD14L
    SMP(M)-JYD14L
    Model Remarks
    SMP(M)-JYD14L Limited Detent

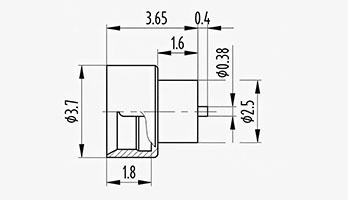

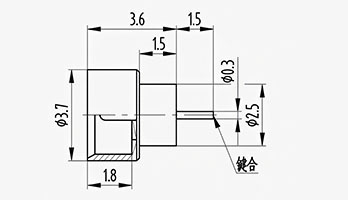

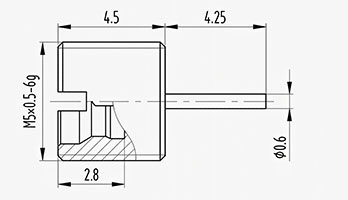

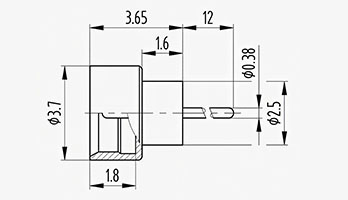

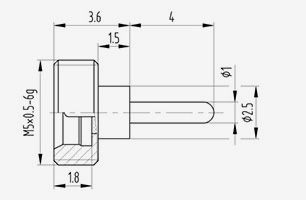

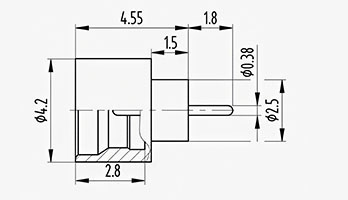

  • SMP(M)-JYD17S
    SMP(M)-JYD17S
    Model Remarks
    SMP(M)-JYD17S Smooth Bore

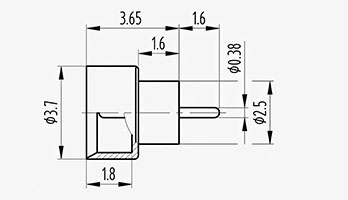

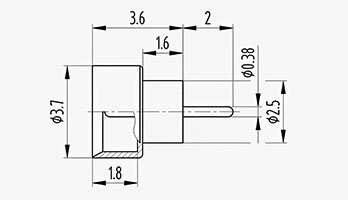

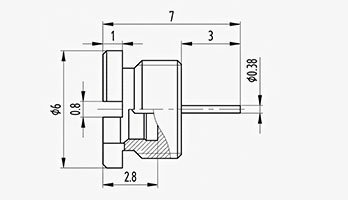

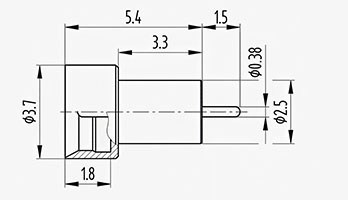

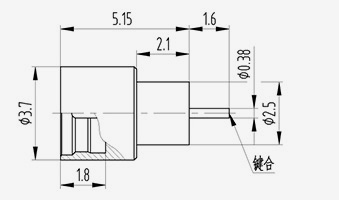

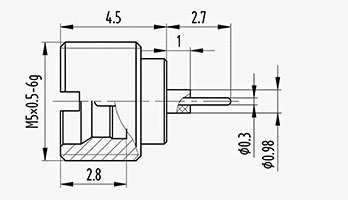

  • SMP(M)-JYD19L
    SMP(M)-JYD19L
    Model Remarks
    SMP(M)-JYD19L Limited Detent

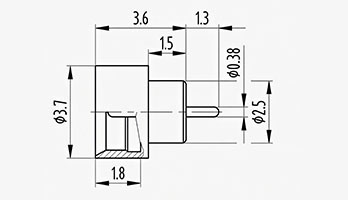

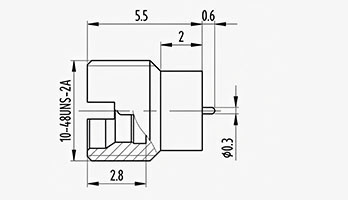

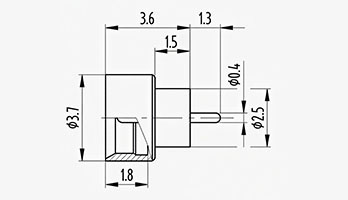

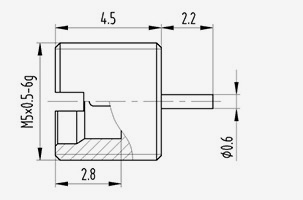

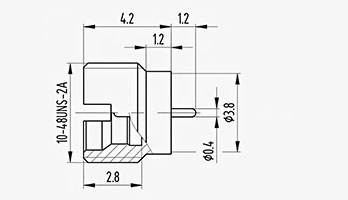

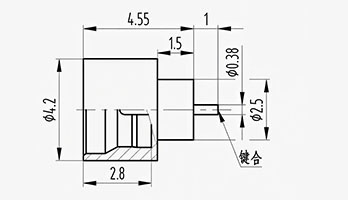

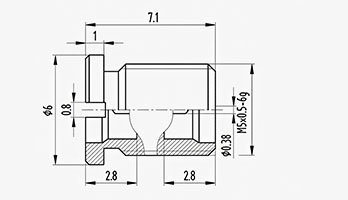

  • SMP(M)-JYD22S
    SMP(M)-JYD22S
    Model Remarks
    SMP(M)-JYD22S Limited Detent

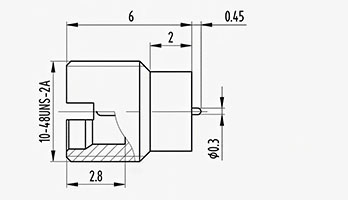

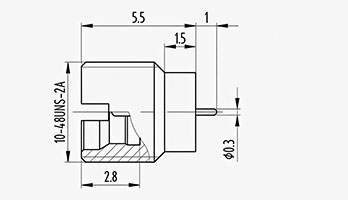

  • SMP(M)-JYD23S
    SMP(M)-JYD23S
    Model Remarks
    SMP(M)-JYD23S Limited Detent

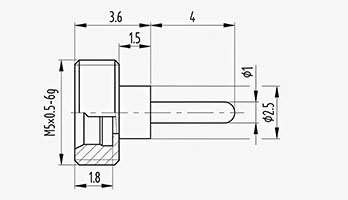

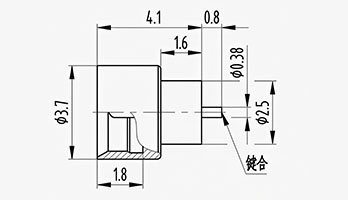

  • SMP(M)-JYD24S
    SMP(M)-JYD24S
    Model Remarks
    SMP(M)-JYD24S Limited Detent

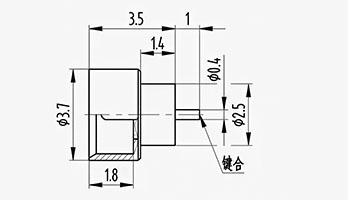

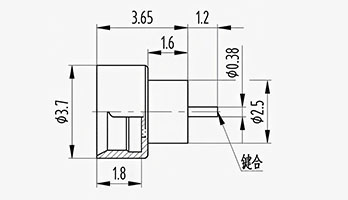

  • SMP(M)-JYD25L
    SMP(M)-JYD25L
    Model Remarks
    SMP(M)-JYD25L Limited Detent

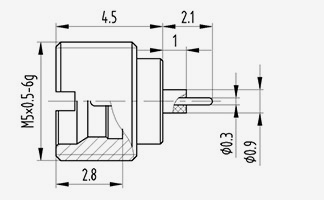

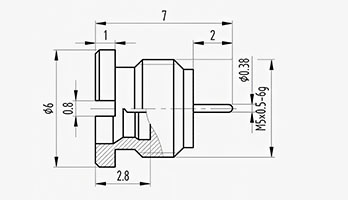

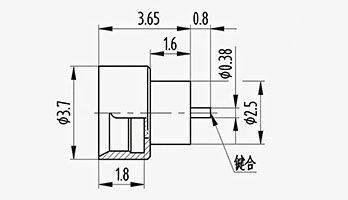

  • SMP(M)-JYD26L
    SMP(M)-JYD26L
    Model Remarks
    SMP(M)-JYD26L Limited Detent

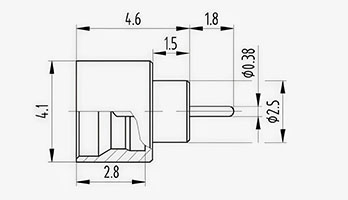

  • SMP(M)-JYD27L
    SMP(M)-JYD27L
    Model Remarks
    SMP(M)-JYD27L Limited Detent

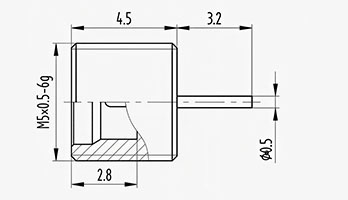

  • SMP(M)-JYD28L
    SMP(M)-JYD28L
    Model Remarks
    SMP(M)-JYD28L Limited Detent

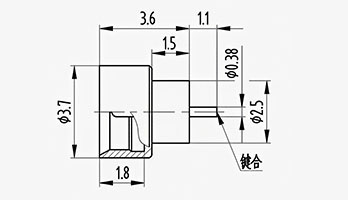

  • SMP(M)-JYD29L
    SMP(M)-JYD29L
    Model Remarks
    SMP(M)-JYD29L Limited Detent
  • SMP(M)-JYD30L
    SMP(M)-JYD30L
    Model Remarks
    SMP(M)-JYD30L Limited Detent
  • SMP(M)-JYD31L
    SMP(M)-JYD31L
    Model Remarks
    SMP(M)-JYD31L Limited Detent
  • SMP(M)-JYD32F
    SMP(M)-JYD32F
    Model Remarks
    SMP(M)-JYD32F Limited Detent
  • SMP(M)-JYD33L
    SMP(M)-JYD33L
    Model Remarks
    SMP(M)-JYD33L Limited Detent
  • SMP(M)-JYD34L
    SMP(M)-JYD34L
    Model Remarks
    SMP(M)-JYD34L Limited Detent
  • SMP(M)-JYD35L
    SMP(M)-JYD35L
    Model Remarks
    SMP(M)-JYD35L Limited Detent
  • SMP(M)-JYD37L
    SMP(M)-JYD37L
    Model Remarks
    SMP(M)-JYD37L Limited Detent
  • SMP(M)-JYD41L
    SMP(M)-JYD41L
    Model Remarks
    SMP(M)-JYD41L Limited Detent
  • SMP(M)-JYD42S
    SMP(M)-JYD42S
    Model Remarks
    SMP(M)-JYD42S Limited Detent
  • SMP(M)-JYD43L
    SMP(M)-JYD43L
    Model Remarks
    SMP(M)-JYD43L Limited Detent
  • SMP(M)-JYD44L
    SMP(M)-JYD44L
    Model Remarks
    SMP(M)-JYD44L Limited Detent
  • SMP(M)-JYD45L
    SMP(M)-JYD45L
    Model Remarks
    SMP(M)-JYD45L Limited Detent
  • SMP(M)-JYD46L
    SMP(M)-JYD46L
    Model Remarks
    SMP(M)-JYD46L Limited Detent
  • SMP(M)-JYD47L
    SMP(M)-JYD47L
    Model Remarks
    SMP(M)-JYD47L Limited Detent
  • SMP(M)-JYD48L
    SMP(M)-JYD48L
    Model Remarks
    SMP(M)-JYD48L Limited Detent
  • SMP(M)-JYD49L
    SMP(M)-JYD49L
    Model Remarks
    SMP(M)-JYD49L Limited Detent
  • SMP(M)-JYD50S
    SMP(M)-JYD50S
    Model Remarks
    SMP(M)-JYD50S Smooth Bore
  • SMP(M)-JYD51L
    SMP(M)-JYD51L
    Model Remarks
    SMP(M)-JYD51L Limited Detent
  • SMP(M)-JYD52S
    SMP(M)-JYD52S
    Model Remarks
    SMP(M)-JYD52S Smooth Bore
  • SMP(M)-JYD53L
    SMP(M)-JYD53L
    Model Remarks
    SMP(M)-JYD53L Limited Detent
  • SMP(M)-JYD54S
    SMP(M)-JYD54S
    Model Remarks
    SMP(M)-JYD54S Smooth Bore
  • SMP(M)-JYD55L
    SMP(M)-JYD55L
    Model Remarks
    SMP(M)-JYD55L Limited Detent
  • SMP(M)-JYD57S
    SMP(M)-JYD57S
    Model Remarks
    SMP(M)-JYD57S Smooth Bore
  • SMP(M)-JYD80L
    SMP(M)-JYD80L
    Model Remarks
    SMP(M)-JYD80L Limited Detent
  • SMP(M)-JYD81L
    SMP(M)-JYD81L
    Model Remarks
    SMP(M)-JYD81L Limited Detent
  • SMP(M)-JYD82L
    SMP(M)-JYD82L
    Model Remarks
    SMP(M)-JYD82L Limited Detent
  • SMP(M)-JYD83F
    SMP(M)-JYD83F
    Model Remarks
    SMP(M)-JYD83F Full Detent
  • SMP(M)-JYD84S
    SMP(M)-JYD84S
    Model Remarks
    SMP(M)-JYD84S Smooth Bore
  • SMP(M)-JYD85S
    SMP(M)-JYD85S
    Model Remarks
    SMP(M)-JYD85S Smooth Bore
  • SMP(M)-JYD86L
    SMP(M)-JYD86L
    Model Remarks
    SMP(M)-JYD86L Limited Detent
  • SMP(M)-JYD87S
    SMP(M)-JYD87S
    Model Remarks
    SMP(M)-JYD87S Smooth Bore
  • SMP(M)-JYD88L
    SMP(M)-JYD88L
    Model Remarks
    SMP(M)-JYD88L Limited Detent
  • SMP(M)-JYD89L
    SMP(M)-JYD89L
    Model Remarks
    SMP(M)-JYD89L Limited Detent
  • SMP(M)-JYD90L
    SMP(M)-JYD90L
    Model Remarks
    SMP(M)-JYD90L Limited Detent
  • SMP(M)-JYD91L
    SMP(M)-JYD91L
    Model Remarks
    SMP(M)-JYD91L Limited Detent
  • SMP(M)-JYD92L
    SMP(M)-JYD92L
    Model Remarks
    SMP(M)-JYD92L Limited Detent
  • SMP(M)-JYD93S
    SMP(M)-JYD93S
    Model Remarks
    SMP(M)-JYD93S Smooth Bore
  • SMP(M)-JYD94L
    SMP(M)-JYD94L
    Model Remarks
    SMP(M)-JYD94L Limited Detent
  • SMP(M)-JYD95L
    SMP(M)-JYD95L
    Model Remarks
    SMP(M)-JYD95L Limited Detent
  • SMP(M)-JYD96L
    SMP(M)-JYD96L
    Model Remarks
    SMP(M)-JYD96L Limited Detent
  • SMP(M)-JYD97S
    SMP(M)-JYD97S
    Model Remarks
    SMP(M)-JYD97S Smooth Bore
  • SMP(M)-JYJ1S
    SMP(M)-JYJ1S
    Model Remarks
    SMP(M)-JYJ1S Smooth Bore
