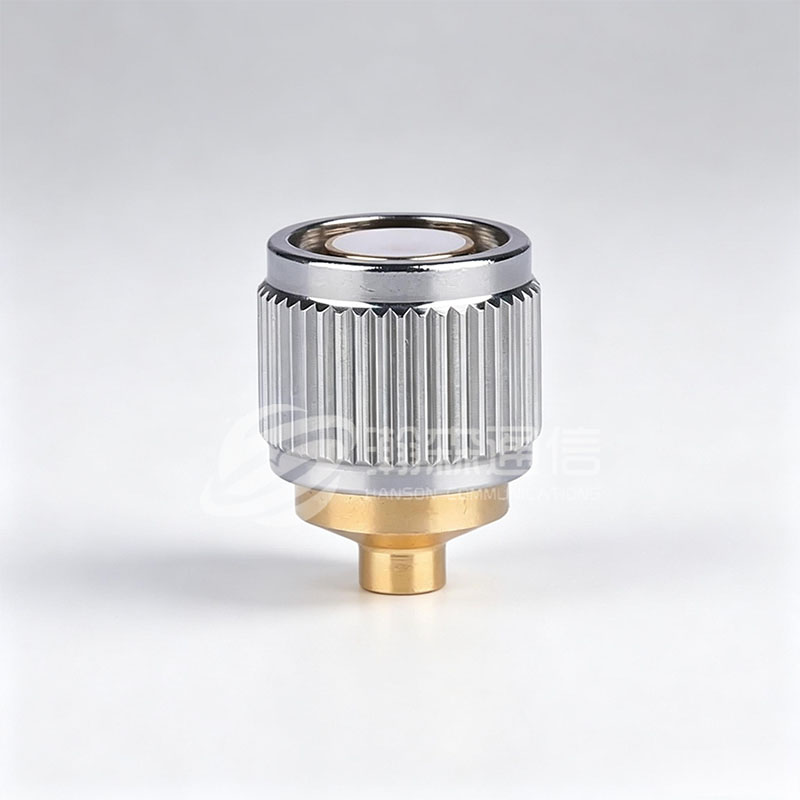

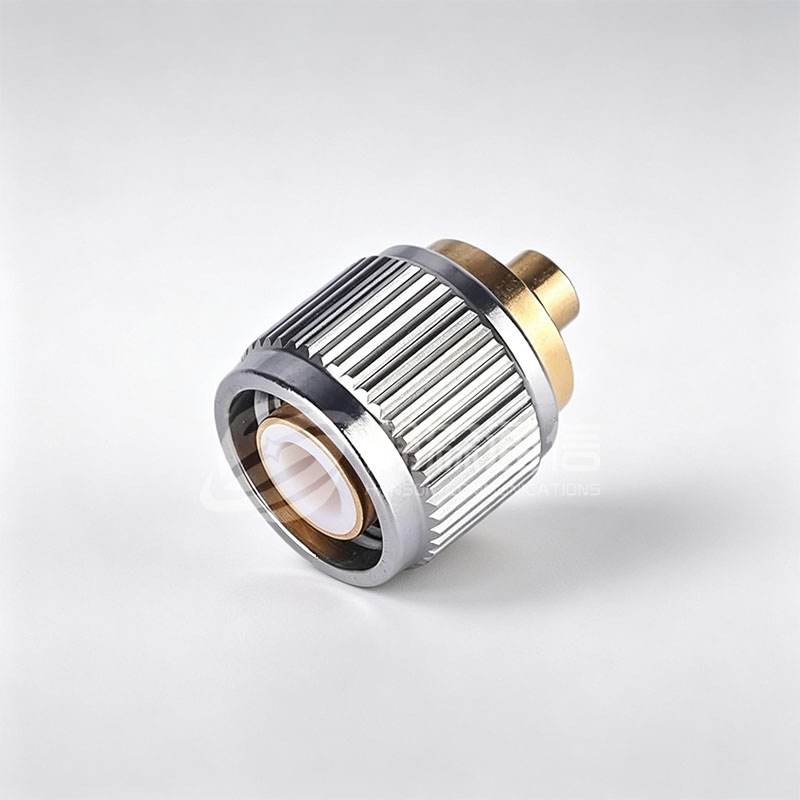

TNC Connector
Description:
TNC series RF coaxial connectors are developed and produced according to the US military standard MIL-C-39012. They have the characteristics of wide bandwidth, reliable connection, and good shock resistance. They are suitable for connectors and RF cables for signal input and output of radio equipment, electronic instruments, various laser components.
Parameter:
Main Technical Specifications:
◆ Characteristic Impedance: 50Ω
◆ Frequency Range: DC-18GHz
◆ Insulation Resistance: ≥5000MΩ
◆ Dielectric Withstand Voltage: 1500V(rms)
◆ Voltage Standing Wave Ratio (VSWR): ≤1.30
◆ Mating Cycles: 500 times

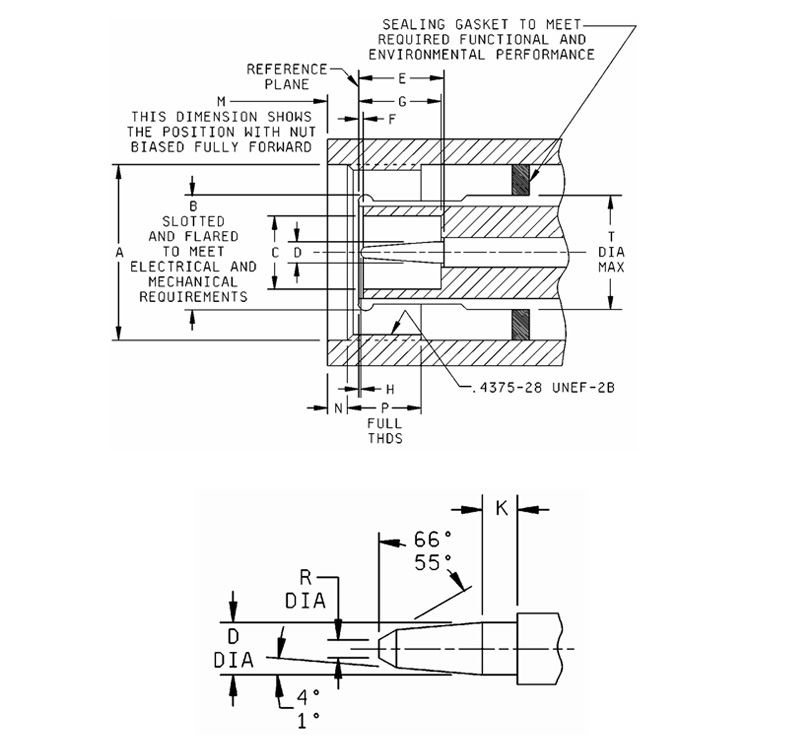

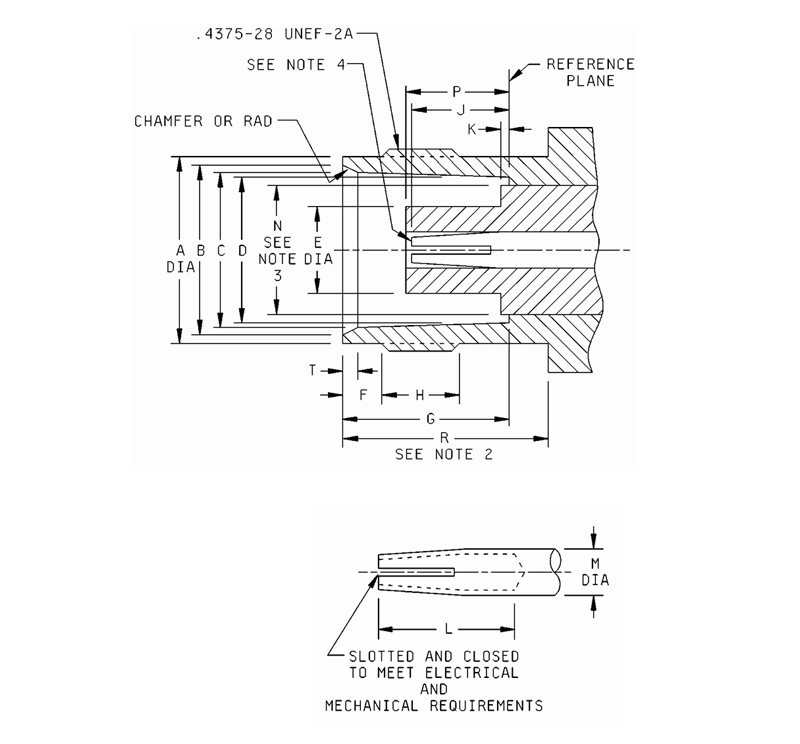

| Dim Ltr |
Millimeters (Inches) | |
| Minimum | Maximum | |
| A | .378 (9.60) | .381 (9.68) |
| B | .346 (8.79) | .356 (9.04) |
| C | .327 (8.31) | .333 (8.46) |
| D | .319 (8.10) | .321 (8.15) |
| E | ------- | .186 (4.72) |
| F | .068 (1.73) | .088 (2.24) |
| G | .327 (8.31) | .335 (8.51) |
| H | .187 (4.75) | ------- |
| J | .186 (4.72) | .206 (5.23) |
| K | ------- | .006 (0.15) |
| L | .195 (4.95) | ------- |
| M | .081 (2.06) | .087 (2.21) |
| N | ------- | .256 (6.50) |
| P | .188 (4.78) | .208 (5.28) |
| R | .414 (10.52) | ------- |
| T | .015 (0.38) | .030 (0.76) |
Notes:
1. This interface shall meet the gauge requirements as specified in
MIL-PRF-39012/28.
2. Clearance for mating connector coupling nut.
3. Dimension applies to that portion (if applicable) of the dielectric
which protrudes beyond the metal
shoulder (or reference plane) by dimension K.
4. ID to meet VSwR when mated with .052 inch (1.32 mm)/.054 (1.37 mm) diameter pin.
| Dim Ltr |
Millimeters (Inches) | |
| Minimum | Maximum | |
| A | .440 (11.18) | ------- |
| B | Gauge test | |
| C | .190 (4.83) | ------- |
| D | .052 (1.32) | .054 (1.37) |
| E | .210 (5.33) | .230 (5.84) |
| F | .006 (0.15) | ------- |
| G | .208 (5.28) | .228 (5.79) |
| H | .003 (0.08) | .040 (1.02) |
| K | .078 (1.98) | ------- |
| M | ------- | .078 (1.98) |
| N | .063 (1.60) | ------- |
| P | .156 (3.96) | ------- |
| R | ------- | .025 (0.64) |
| T | ------- | .322 (8.18) |
Notes:
1. This interface shall meet the gauge requirements as specified in MIL-PRF-39012/26.
TNC SERIES
-

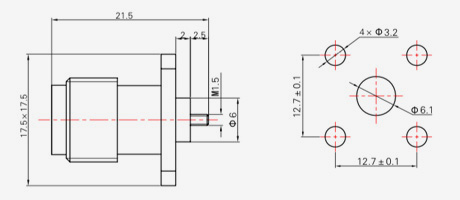

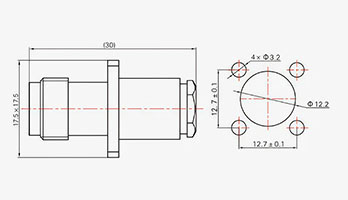

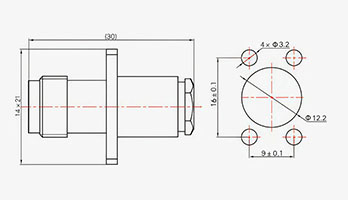

TNC-KF3A
Model Cable type TNC-KF3A SYV-50-2-1,RG316 TNC-KF5A SYV-50-3,RG142,SFCJ-50-3-51 -
TNC-KF3A-1
Model Cable type TNC-KF3A-1 SYV-50-2-1,RG316 -

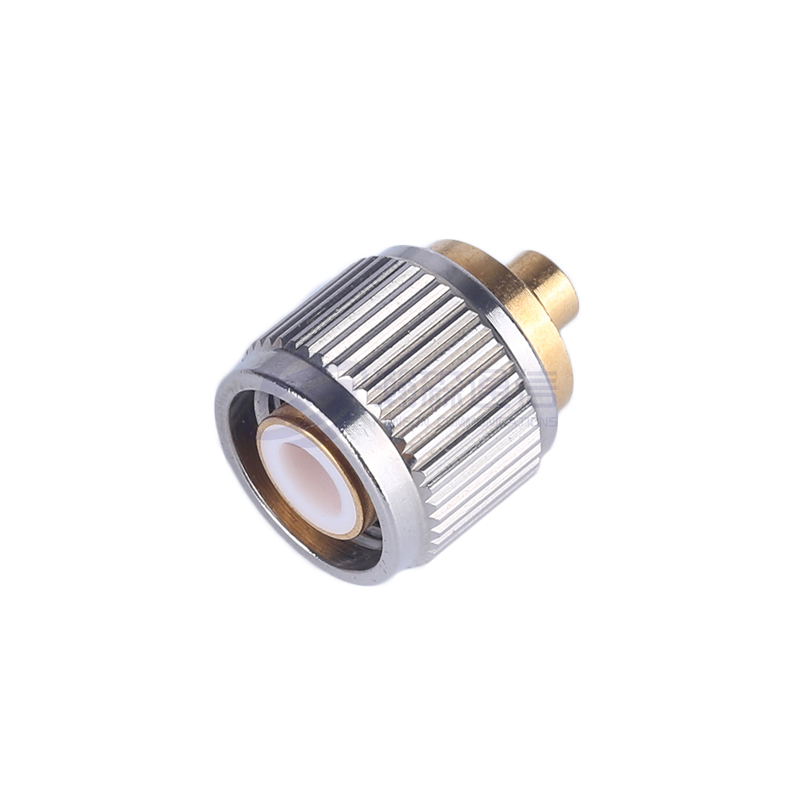

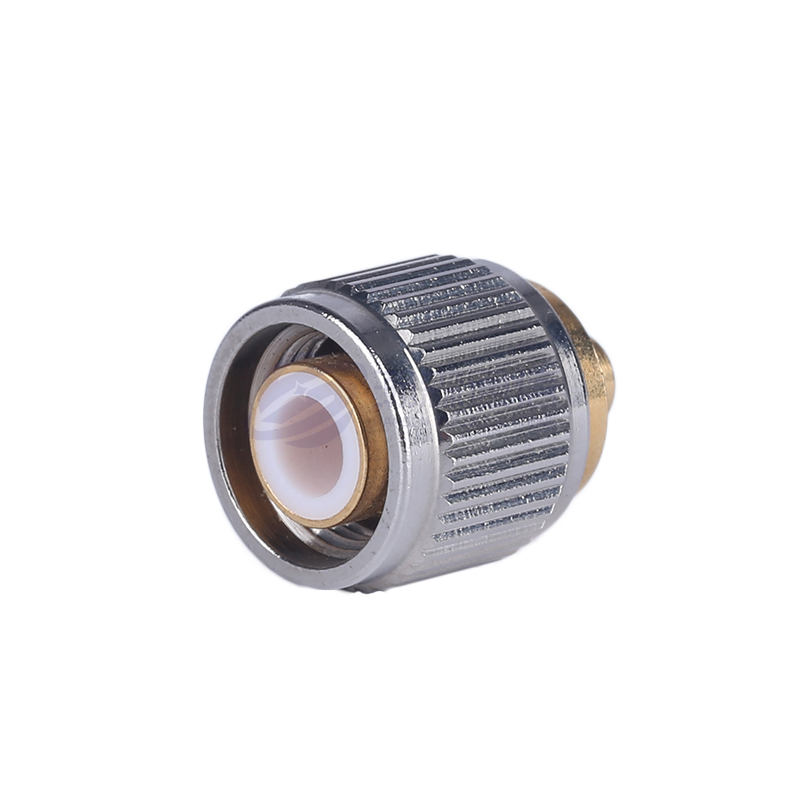

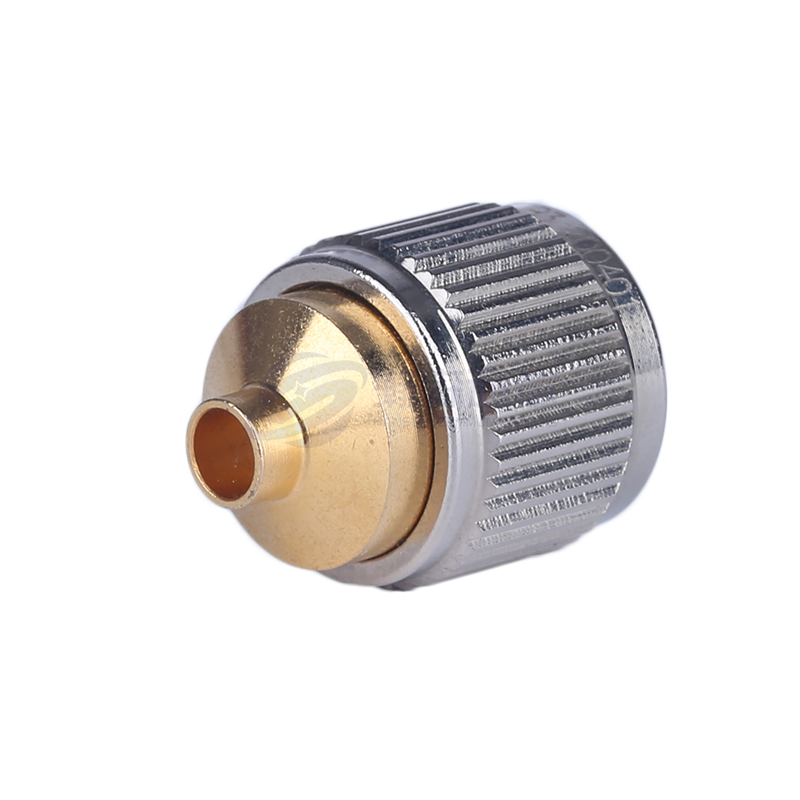

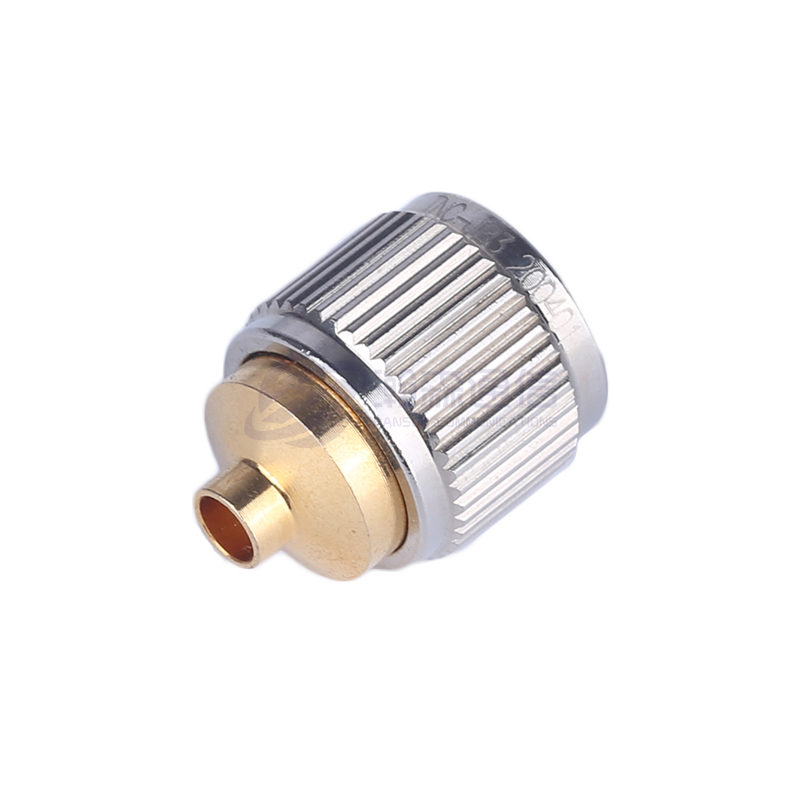

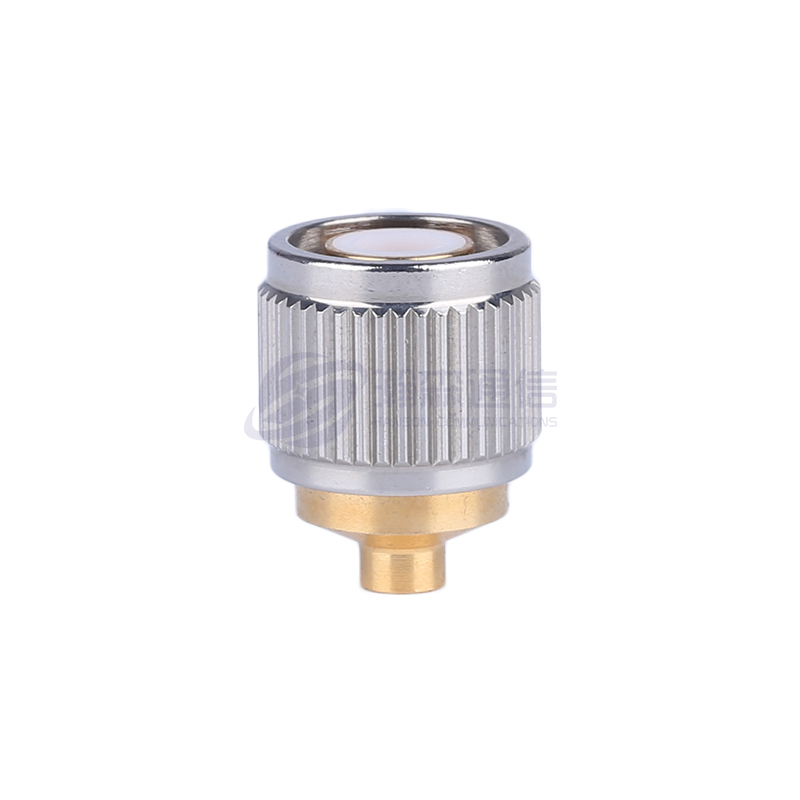

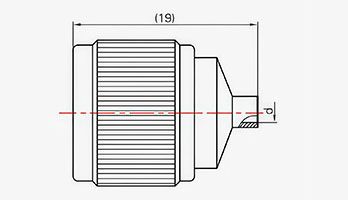

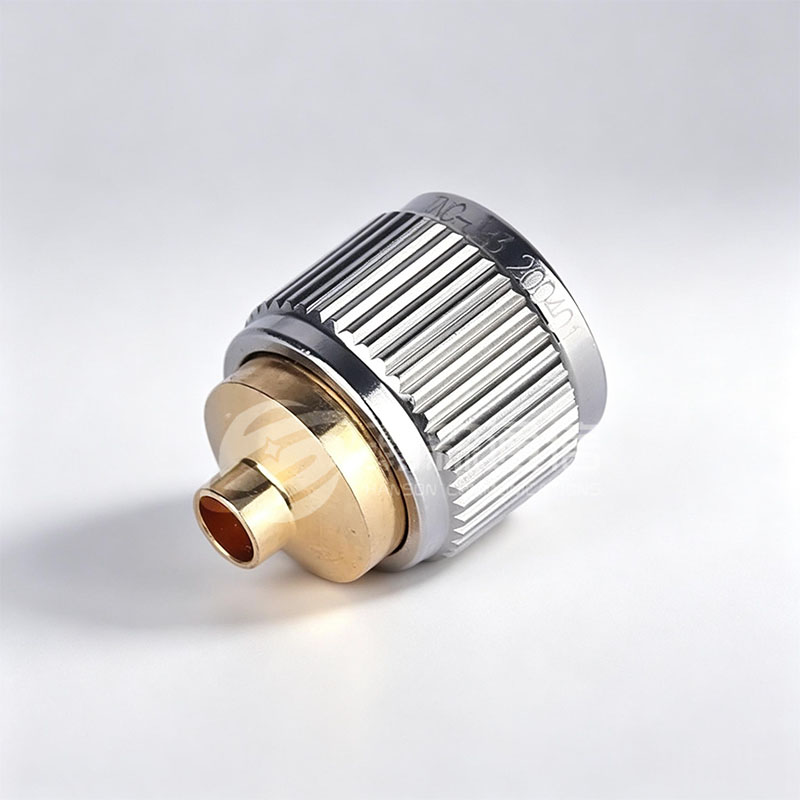

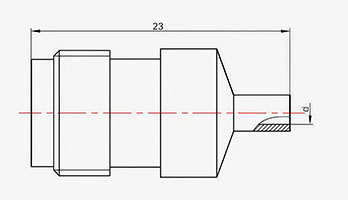

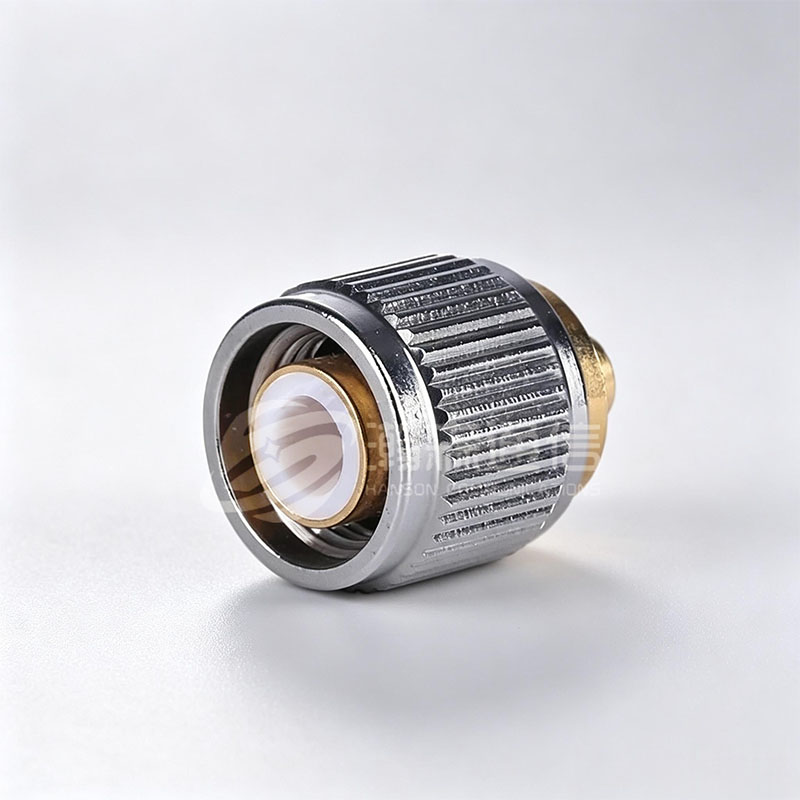

TNC-JB2
Model Cable type d TNC-JB2 SFT-50-2,670-086 Φ2.2 TNC-JB3 SFT-50-3,670-141 Φ3.6 -

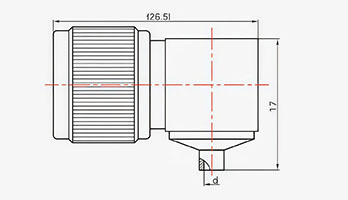

TNC-JWB2
Model Cable type d TNC-JWB2 SFT-50-2,670-086 Φ2.2 TNC-JWB3 SFT-50-3,670-141 Φ3.6 -

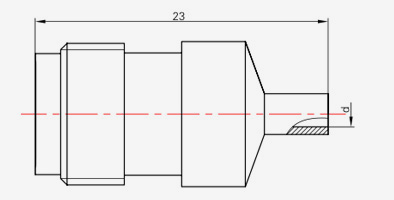

TNC-KB2
Model Cable type d TNC-KB2 SFT-50-2,670-086 Φ2.2 TNC-KB3 SFT-50-3,670-141 Φ3.6 -

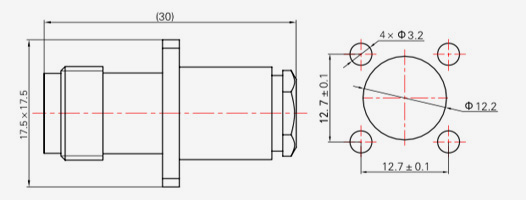

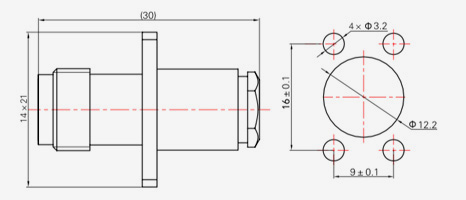

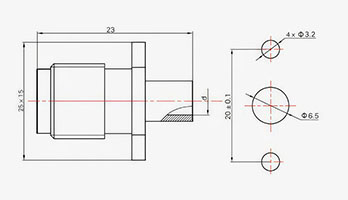

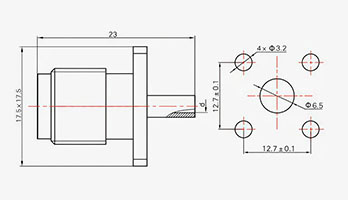

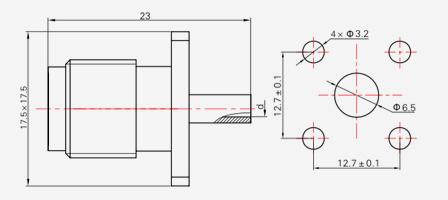

TNC-KFB2
Model Cable type d TNC-KFB2 SFT-50-2,670-086 Φ2.2 TNC-KFB3 SFT-50-3,670-141 Φ3.6 -
TNC-KFB2-1
Model Cable type d TNC-KFB2-1 SFT-50-2,670-086 Φ2.2 TNC-KFB3-1 SFT-50-3,670-141 Φ3.6 -

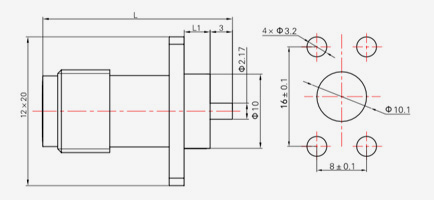

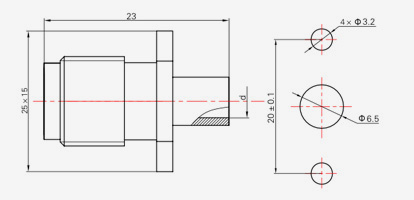

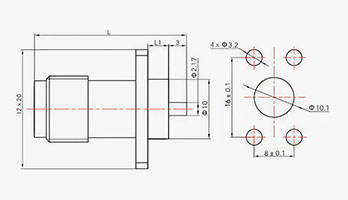

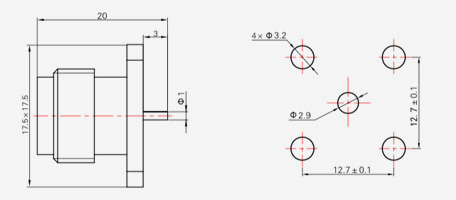

TNC-KFD2
Model L L1 KFD2 27 3.5 KFD3 22 2 -

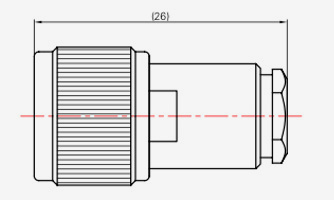

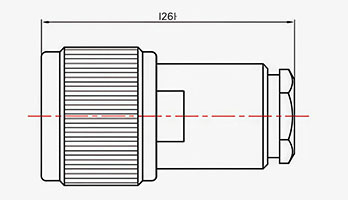

TNC-J3A
Model Cable type TNC-J3A SYV-50-2-1,RG316 TNC-J5A SYV-50-3-4,RG142, SFCJ-50-3-51 TNC-J5AC -

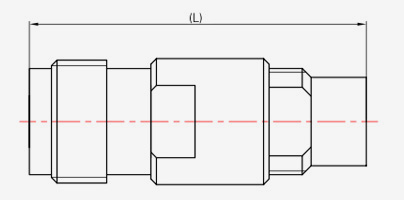

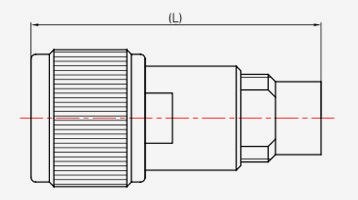

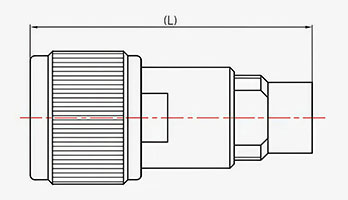

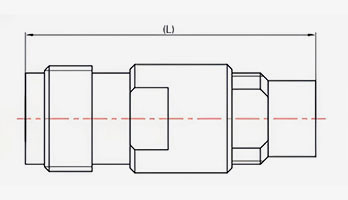

TNC-J4
Model Cable type L TNC-J4 SYV-50-2-2 31 TNC-J5 SYV-50-3-4, SFCJ-50-3-51,RG316 31 TNC-(K)5 TNC-J5C TNC-J7 SYV-50-5-1, SFCJ-50-5-51 36 TNC-J7C TNC-J10 SYV-50-7-1,SYV-50-7-2, SFCJ-50-7-51 36 TNC-J10C -

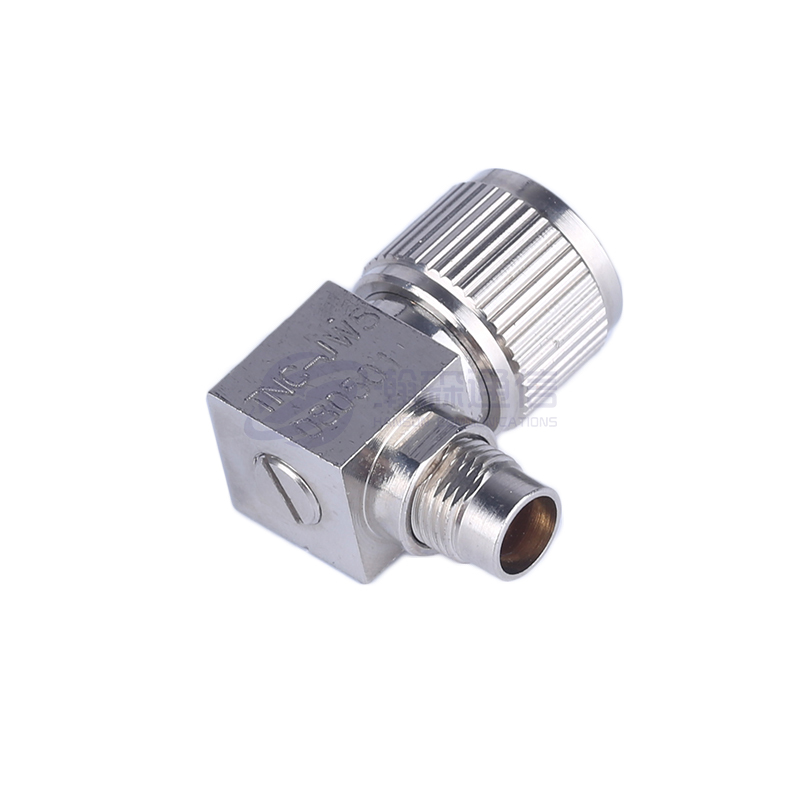

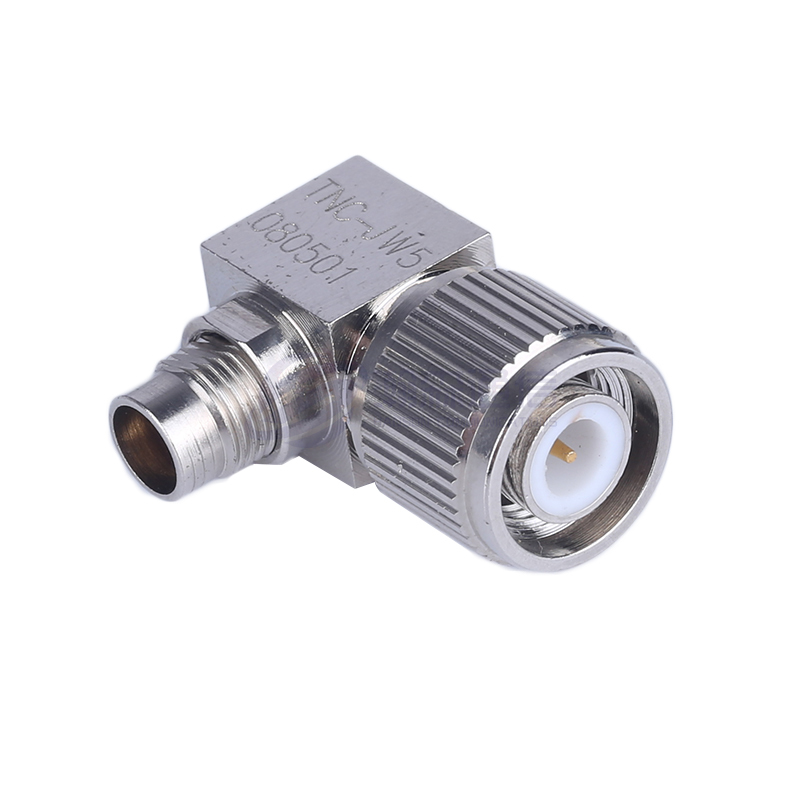

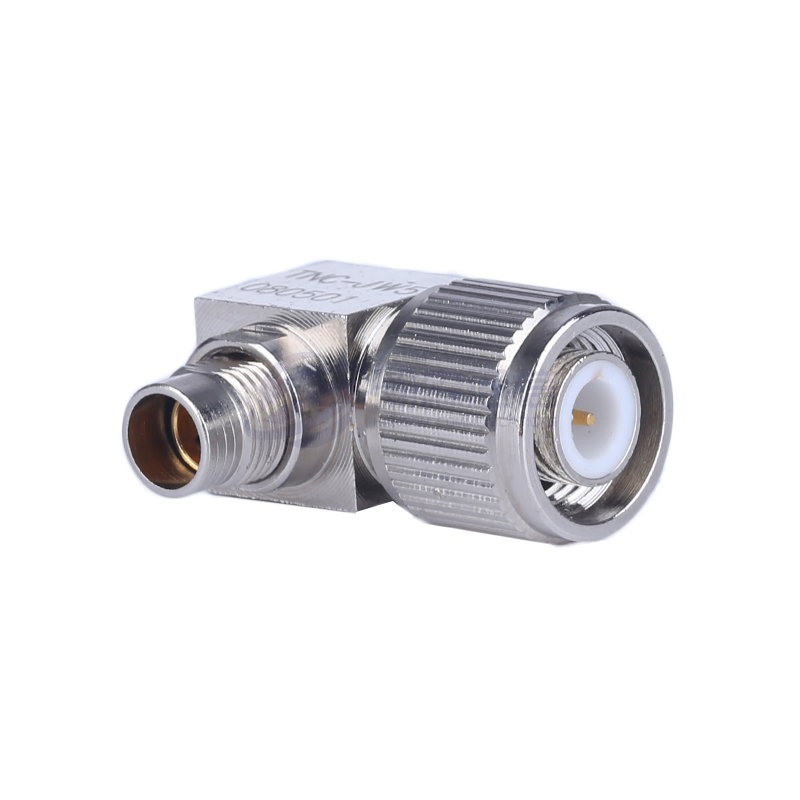

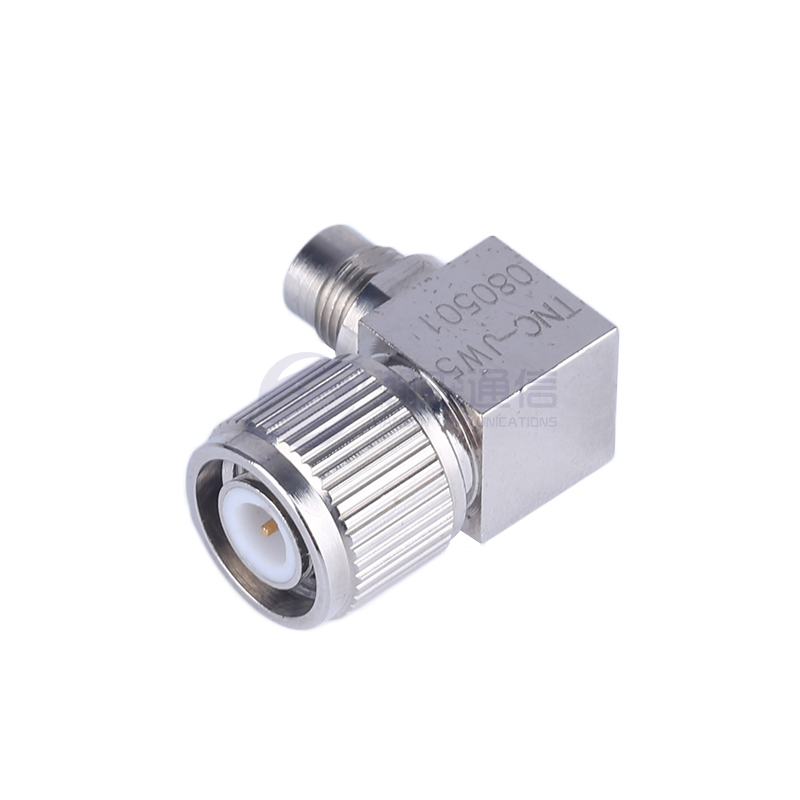

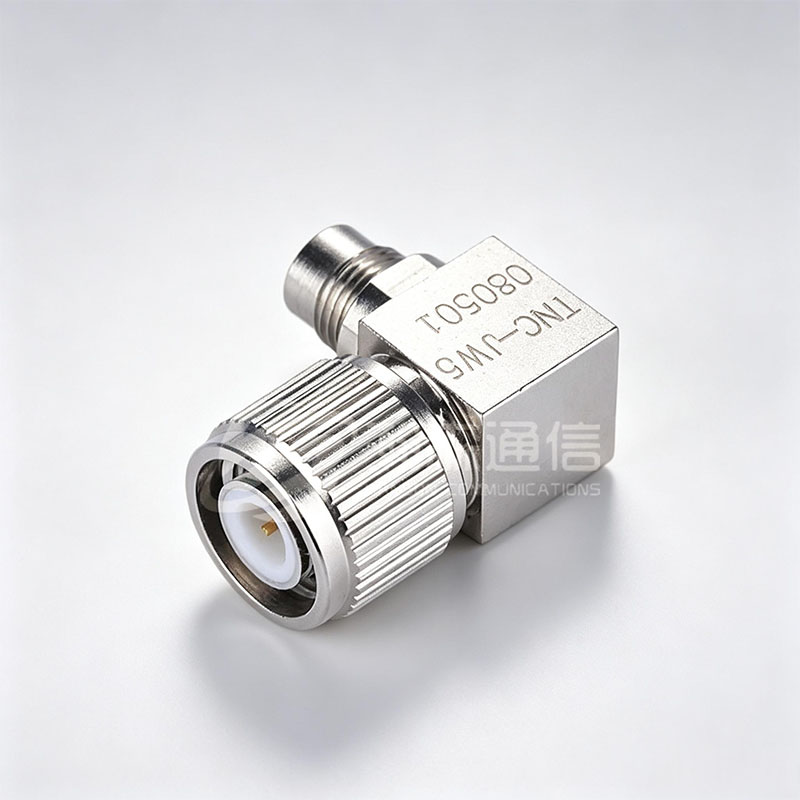

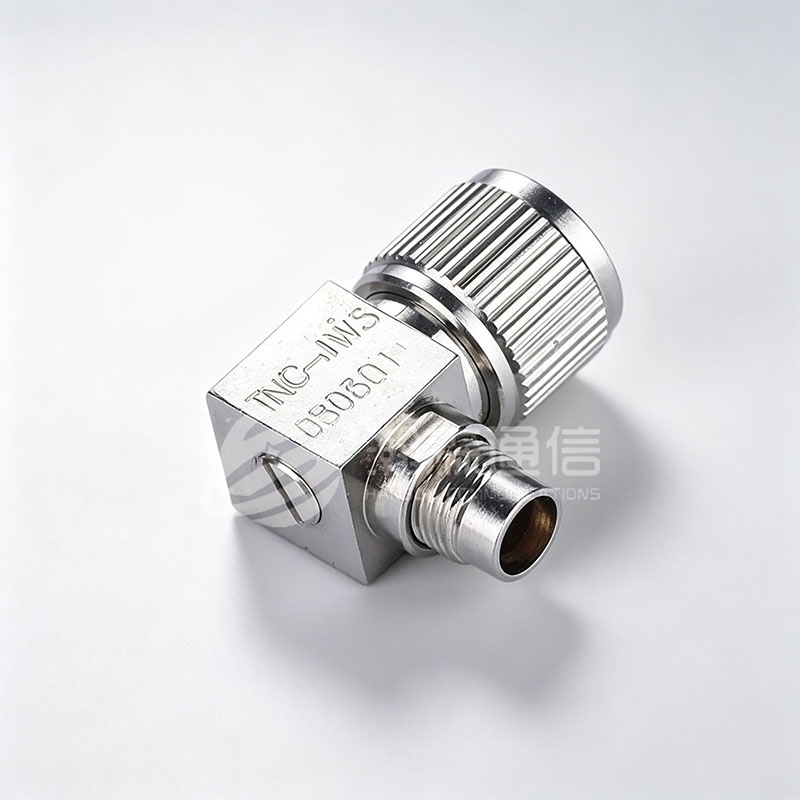

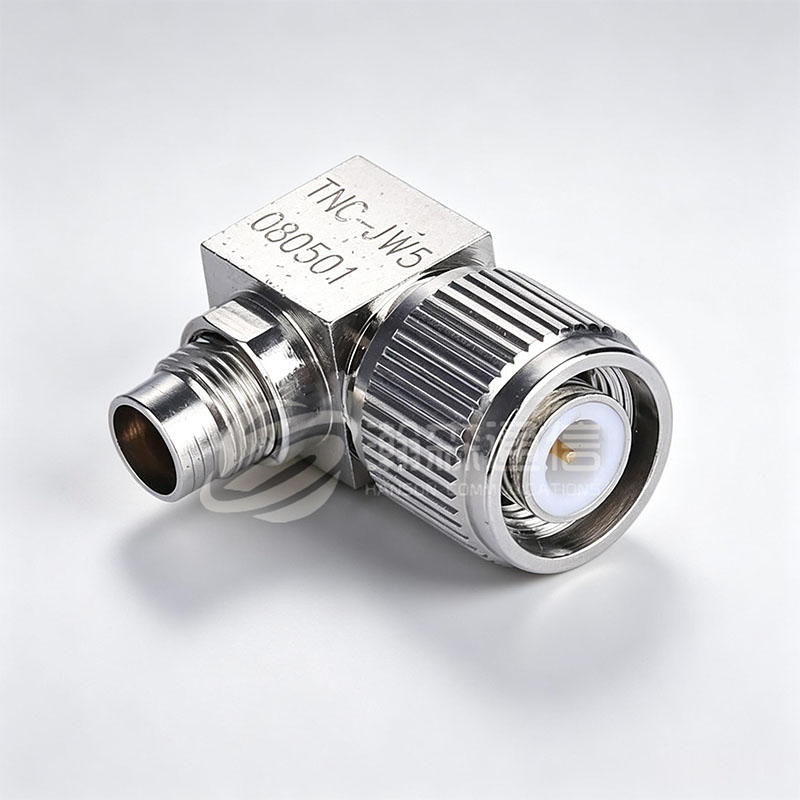

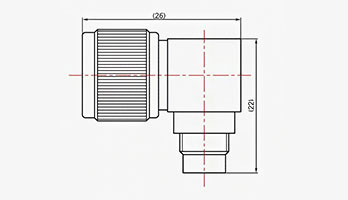

TNC-JW5
Model Cable type TNC-JW5 SYV-50-3-4,SFCJ-50-3-51,RG142 TNC-JW7 SYV-50-5-1,SFCJ-50-5-51 TNC-JW10 SYV-50-7-2,SFCJ-50-7-51 -

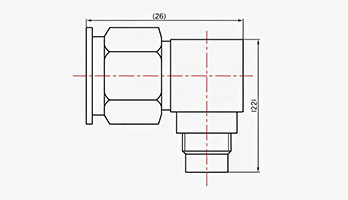

TNC-JW5-1
Model Cable type TNC-JW5-1 SYV-50-3-4,SFCJ-50-3-51,RG142 -
TNC-K5
Model Cable type L TNC-K5 SYV-50-3-4, SFCJ-50-3-51,RG142 31 TNC-(J)5 TNC-K7 SYV-50-5-1, SFCJ-50-5-51 33 TNC-K10 SYV-50-7-1, SYV-50-7-2,SFCJ-50-7-51 33 -

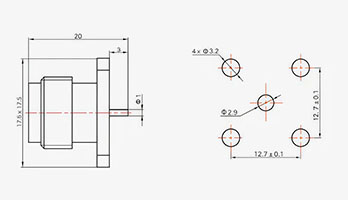

TNC-KFD1
-
TNC-KFD4
