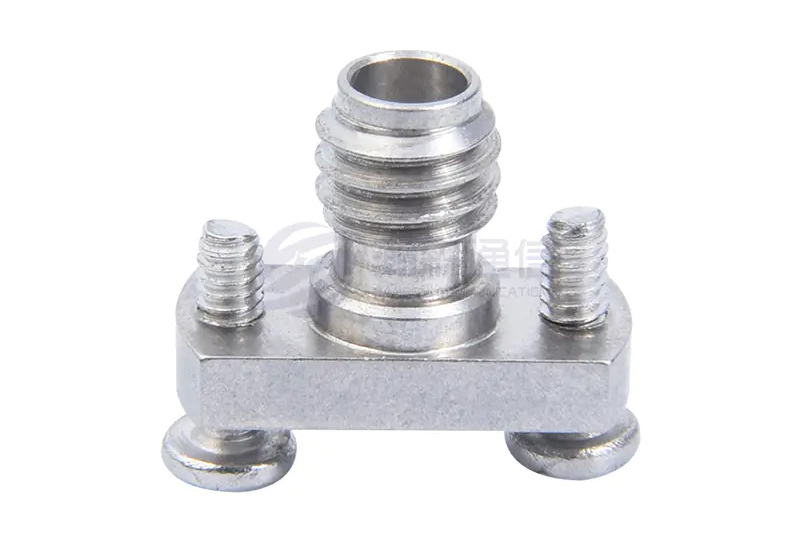

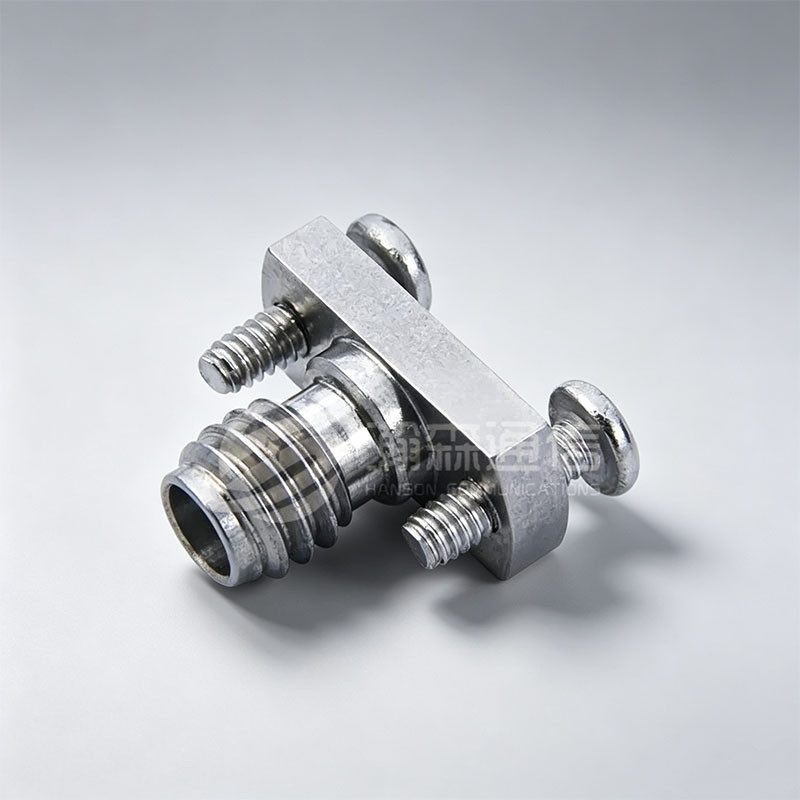

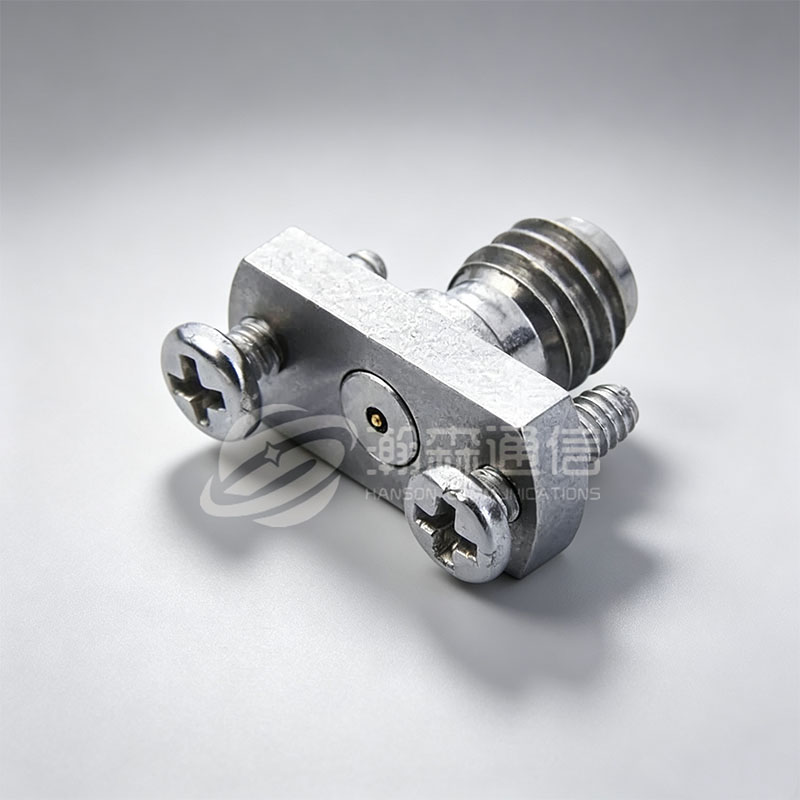

1.0mm RF connector is a miniaturized RF coaxial connector, usually used for high-frequency signal transmission. Its interface size is 1.0mm, suitable for high-frequency and high-density application scenarios, such as communication equipment, test instruments, and aerospace.
Main Technical Specifications:
◆ Characteristic Impedance: 50Ω
◆ Frequency Range: DC~110GHz
◆ Insulation Resistance: ≥3000MΩ
◆ Dielectric Withstand Voltage: 500V(rms)
◆ Voltage Standing Wave Ratio (VSWR): ≤1.50
◆ Mating Cycles: 500 times
