What is the function of an RF coaxial adapter?

In radio frequency (RF) systems, the stability and consistency of signal transmission are crucial. Whether it's communication equipment, test instruments, wireless transmission systems, or laboratory RF measurement platforms, all rely on various coaxial connectors. However, in practical engineering, different devices often use different interface types, necessitating a key component that can connect, convert, and maintain signal quality—the RF coaxial adapter. So, what exactly is the function of an RF coaxial adapter? What role does it play in an RF system?

1. Basic Functions of an RF Coaxial Adapter
The primary function of an RF coaxial adapter is to enable reliable conversion and connection between different types of RF connectors. For example, some instruments use N-type interfaces, while the device uses SMA interfaces; in such cases, an N-to-SMA RF adapter is needed to allow for seamless interconnection.

Common connection methods include:

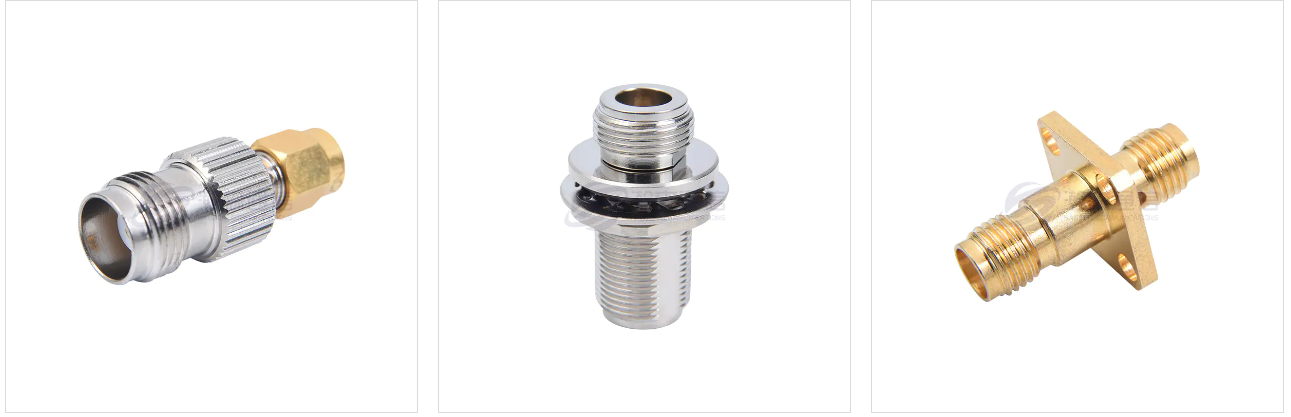

Adaptation between different types of interfaces: such as SMA-N, BNC-TNC, SMA-UHF, etc.
Adaptation between different types of interfaces: such as SMA female to SMA female, SMA male to SMA male, etc.
Connection between precision and standard interfaces: meeting high-frequency measurement requirements.

This flexibility significantly improves system compatibility, eliminating the need to replace the entire wiring or ports, thereby reducing costs and increasing efficiency.

2. Ensuring Stable RF Signal Transmission
Many people mistakenly believe that an adapter is merely a "physical connector," but in reality, its electrical characteristics have a significant impact on system signal quality. High-quality RF adapters can:

(1) Maintain Consistent Characteristic Impedance
Most RF systems use a 50-ohm characteristic impedance. If the adapter impedance is mismatched, it will lead to increased reflection and a higher VSWR, thus affecting signal integrity.

(2) Reduce Insertion Loss
High-quality adapters typically have extremely low insertion loss, minimizing signal attenuation during high-frequency transmission.

(3) Maintaining Wideband Transmission Capability
RF coaxial adapters typically support signals from DC to several GHz, tens of GHz, or even higher frequencies, which is especially important for microwave testing scenarios.

Therefore, a good RF adapter not only completes the connection but also ensures accurate and stable signal transmission.

3. Enhancing Flexibility and Expandability
RF test instruments, such as spectrum analyzers, network analyzers, and power meters, employ various port types. RF coaxial adapters allow engineers to:
Quickly convert interfaces, reducing preparation time;
Easierly connect probes, loads, calibration components, and other critical equipment;
Flexibly configure connection paths in complex testing scenarios;
Avoid wear and tear caused by frequent cable or connector replacements.
For laboratory testers, RF adapters are almost indispensable tools; efficient testing is impossible without them.

4. Reducing Equipment Wear and Protecting Connector Lifespan
Many high-end test instruments have extremely expensive RF ports, and frequent plugging and unplugging can cause wear. Using RF coaxial adapters acts as a "protective interface," concentrating wear on the cheaper adapter rather than the expensive device port.

For example:
Installing SMA adapters on network analyzers for long-term protection;
Using high-precision adapters when switching high-frequency probes to reduce the risk of damage.
This not only extends equipment lifespan but also reduces maintenance costs.

While seemingly a small connector, the RF coaxial adapter plays a crucial role in RF systems. It not only ensures interface compatibility but also guarantees signal quality, protects device ports, and improves testing efficiency, making it an indispensable foundational component for various RF systems.
