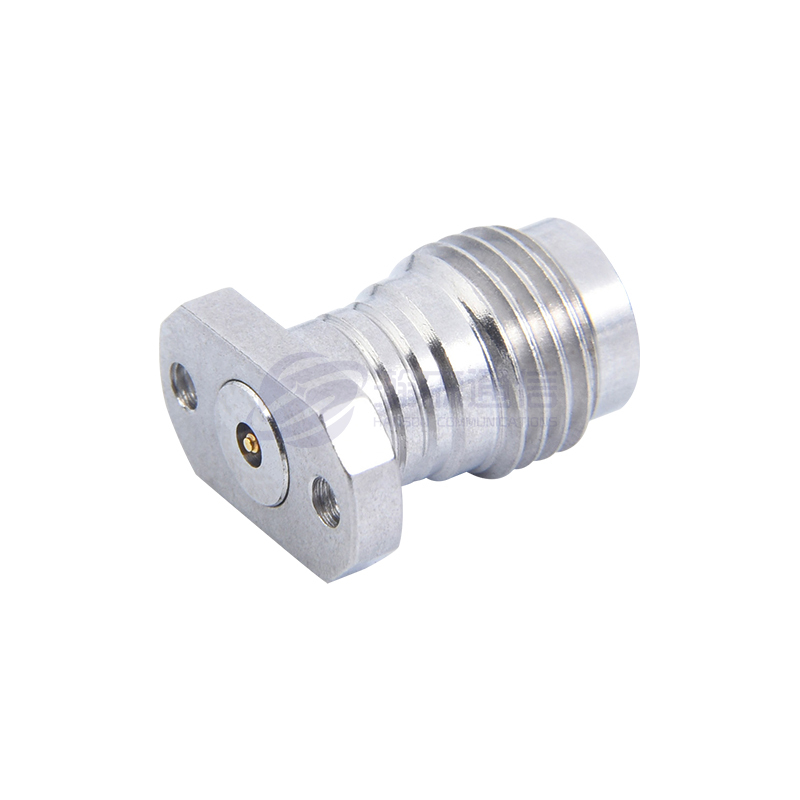

1.85mm Connector

Description:

The 1.85mm series connector (also known as the 1.85mm RF connector) is a high-performance radio frequency (RF) connector that is primarily used in applications that require high frequency, high precision, and low loss, especially in signal transmission at 26.5 GHz or higher. It is a compact design of the SMA series connector that provides a smaller size and higher frequency performance compared to other high-frequency connectors such as the V Type (2.92mm) or K Type (1.0mm).

Parameter:

Main Technical Specifications:
◆ Characteristic Impedance: 50Ω
◆ Frequency Range: DC～67GHz
◆ Insulation Resistance: ≥3000MΩ
◆ Dielectric Withstand Voltage: 500V(rms)
◆ Voltage Standing Wave Ratio (VSWR): ≤1.30
◆ Mating Cycles: 500 times

Inquire

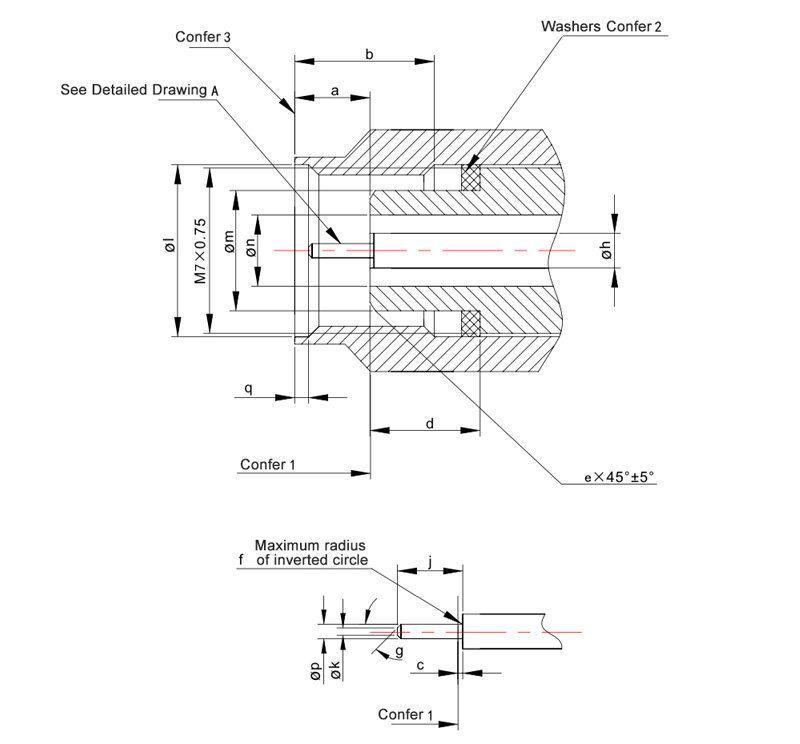

  • 1.85mm Series Jack Contacts Connector Interface

Size mm in
min max min max
a 1.850 2.450 0.073 0.096
b 4.370 4.630 0.172 0.182
C 0.000 0.0762 0.000 0.003
d 3.380 3.480 0.133 0.137
e 0.250 0.360 0.010 0.014
f - RO.050 - R0.002
g 28° 32° 28° 32°
h 0.7909 0.8163 0.0311 0.0321
j 1.335 1.445 0.053 0.057
k 0.000 0.250 0.000 0.010
l 7.010 7.110 0.276 0.280
m 4.725 4.750 0.186 0.187
n 1.8373 1.8627 0.07233 0.0733
p 0.498 0.523 0.0196 0.0206
q 0.508 0.762 0.020 0.030

Notes:
1. Mechanical and electrical reference surfaces.
2. Washers as required for Class 1 connectors.
3. Connection nuts with forward offset.

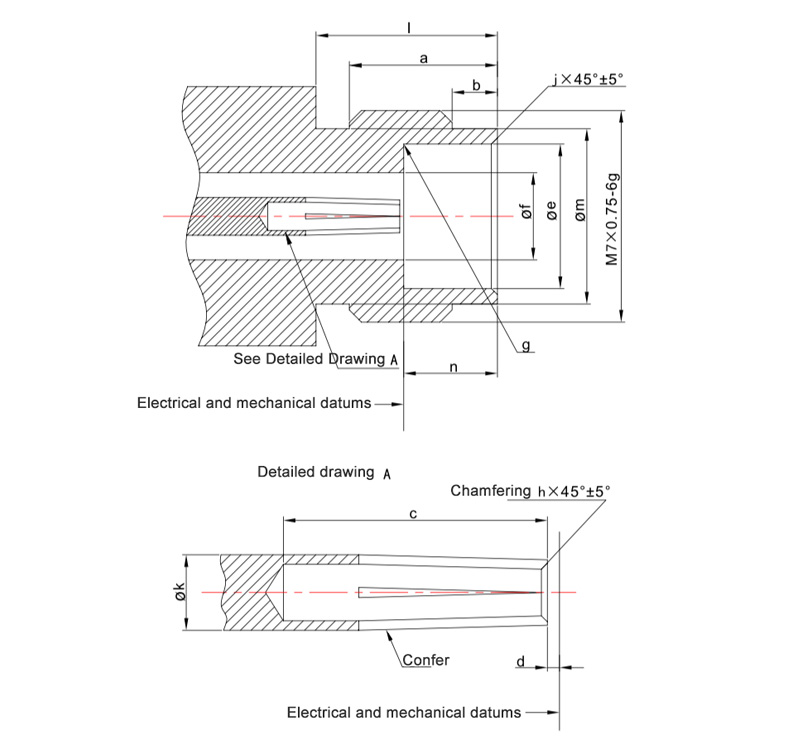

  • 1.85mm Series Jack Contacts Connector Interface

Size mm in
min max min max
a 4.800 5.060 0.189 0.199
b 1.370 1.630 0.054 0.064
C 2.650 － 0.104 －
d 0.000 0.0762 0.000 0.003
e 4.770 4.795 0.1878 0.1888
f 1.8373 1.8627 0.07233 0.07333
g － R0.130 － R0.005
h 0.100 0.130 0.004 0.005
j 0.100 0.200 0.004 0.008
k 0.7909 0.8163 0.0311 0.0321
l 6.000 － 0.236 －
m 5.790 5.890 0.228 0.232
n 3.000 3.100 0.118 0.122

Notes:
The structure of the socket contact piece is arbitrary. When mating with pins with diameters of 0.498mm to 0.523mm, the dimensions should meet the reflection coefficient, mating characteristics and connector durability requirements.

SERIES
  • 1.85-JB1
    1.85-JB1

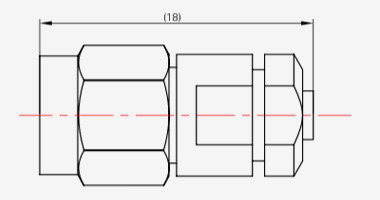

    Model Cable type
    1.85-JB1 SFT-50-1,670-047
  • 1.85-KB1
    1.85-KB1

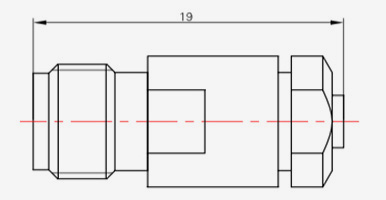

    Model Cable type
    1.85-KB1 SFT-50-1,670-047
