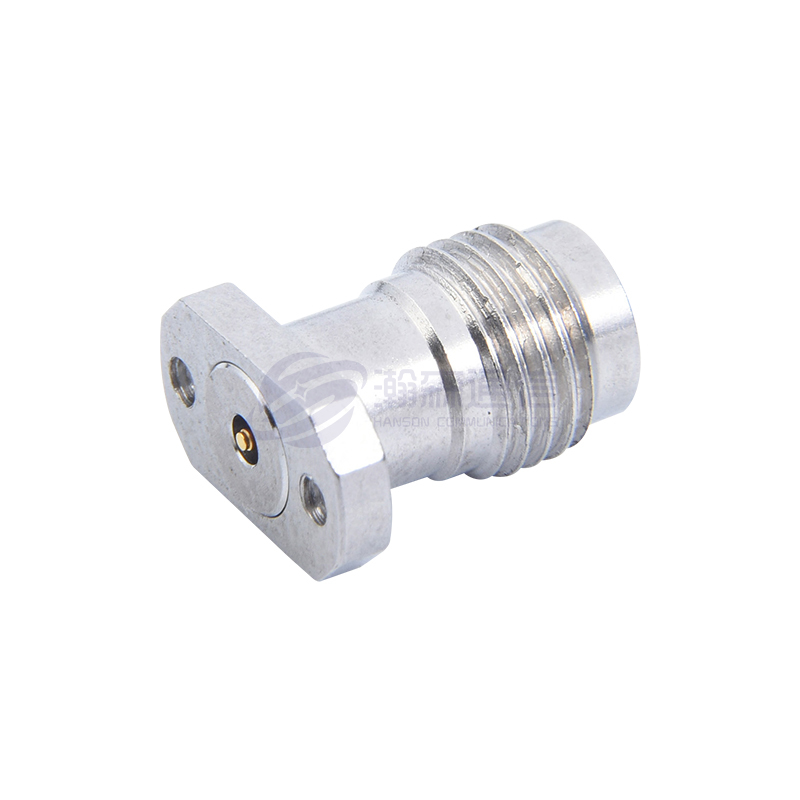

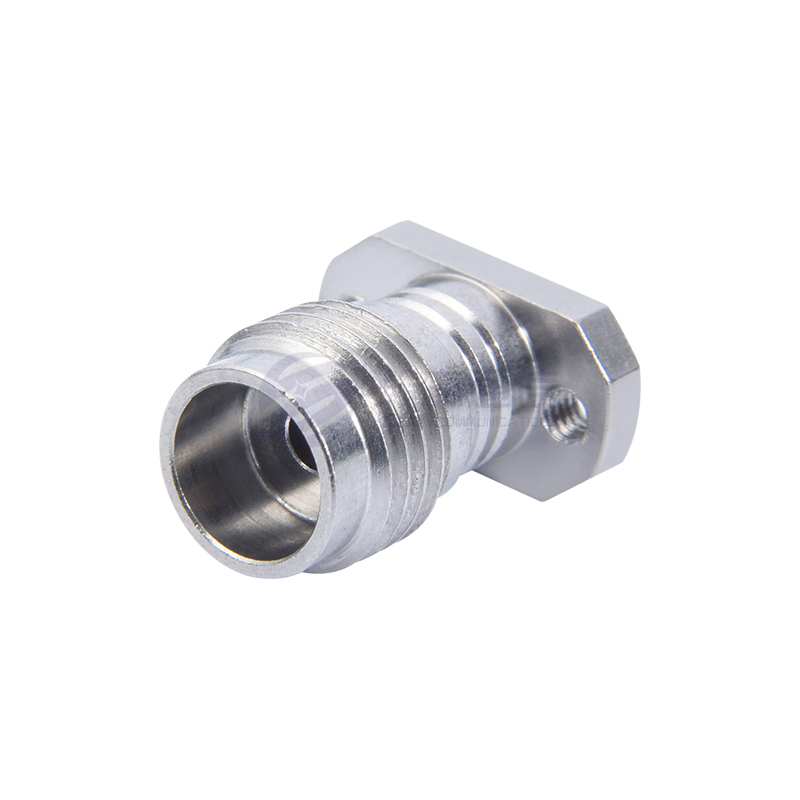

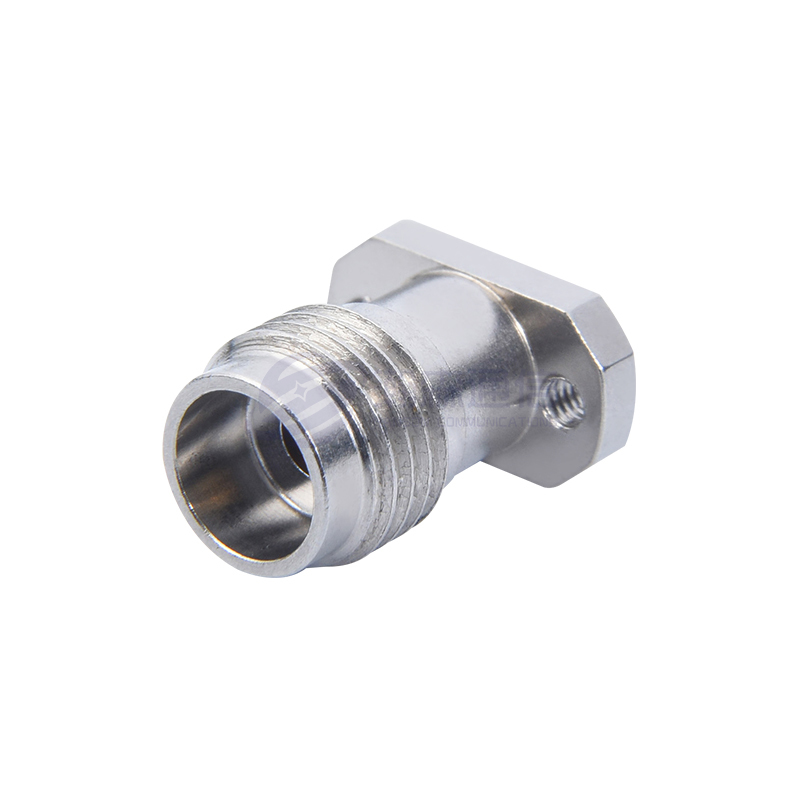

2.4mm Connector

Description:

The 2.4mm series connector is a high-frequency RF connector designed for high-precision, high-frequency applications, especially for signal transmission occasions that require a transmission frequency range of 40 GHz or even higher. It is an ideal choice for providing high-performance signal connections in the microwave frequency band, high-speed communication, and precision test and measurement fields.

Parameter:

Main Technical Specifications:
◆ Characteristic Impedance: 50Ω
◆ Frequency Range: DC-50GHz
◆ Insulation Resistance: ≥5000MΩ
◆ Dielectric Withstand Voltage: 500V(rms)
◆ Voltage Standing Wave Ratio (VSWR): ≤1.35
◆ Mating Cycles: 500 times

Inquire

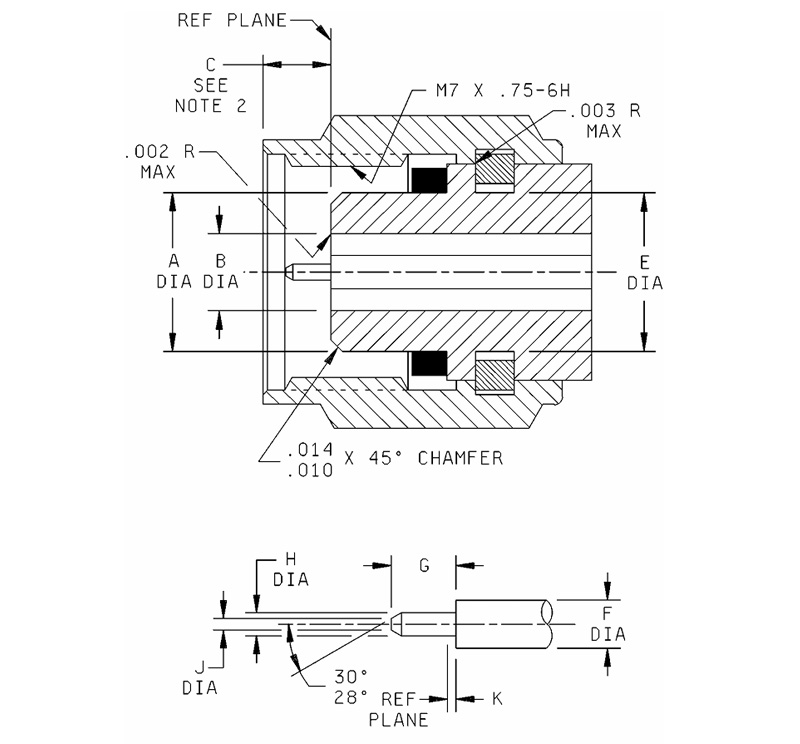

Letter Millimeters (Inches)
Minimum Maximum
A 4.725 (.186) 4.75(.187)
B 2.393(.094) 2.408(095)
C 1.85 (.073) 2.45 (.096)
E 4.75（.187) 4.85(.191)
F 1.035（.0407) 1.05 (.0413)
G 1.34 (.053) 1.45 (.057)
H 0.498(.0196) 0.523 (.0206)
J ---------- 0.25(.010)
K 0.00 (.000) 0.08 (.003)

Notes:
1. Thread length is from the end of the coupling nut, 4.37 mm (.172inch) minimum, 0.63 mm (.025 inch)±0.25 mm (.010 inch).
2. With coupling nut biased in the forward direction.
3. Dimensions are in millimeters.
4. Inch-pound equivalents are given for information only.
5. Counter bore 7 mm (.276 inch) minimum.

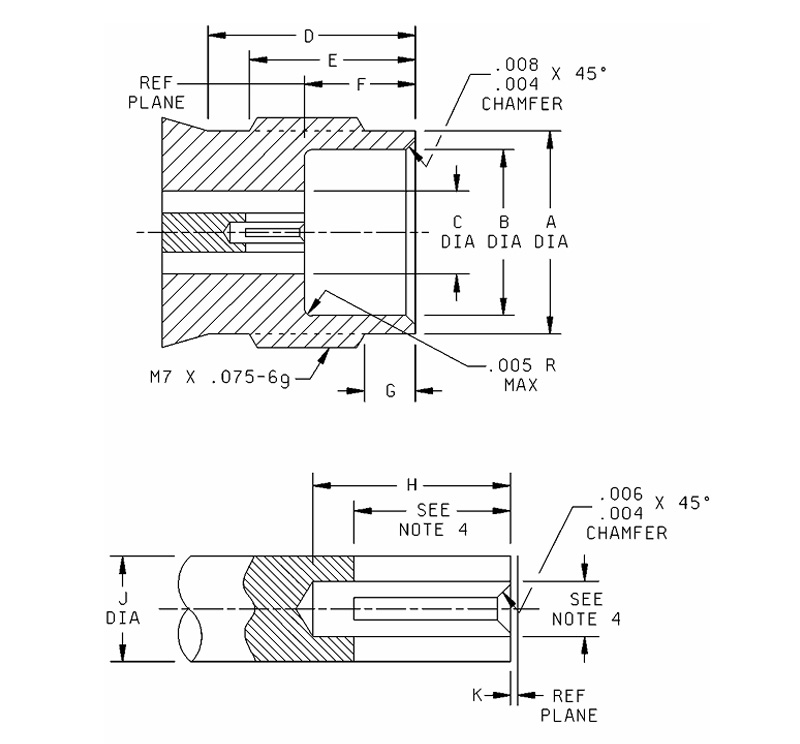

Letter Millimeters (Inches)
Minimum Maximum
A 4.725(.186) 4.75 (187)
B 2.393 (.094) 2.408 (.095)
C 1.85 (.073) 2.45 (.096)
E 4.75（.187) 4.85 (.191)
F 1.035（.0407) 1.05 (.0413)
G 1.34 (.053) 1.45 (.057)
H 0.498 (.0196) 0.523(.0206)
J -------- 0.25 (.010)
K 0.00(.000) 0.08 (.003)

Notes:
1. Thread length is from the end of the coupling nut, 4.37 mm (.172inch) minimum, 0.63 mm (.025 inch)±0.25 mm (.010 inch).
2. With coupling nut biased in the forward direction.
3. Dimensions are in millimeters.
4. Inch-pound equivalents are given for information only.
5. Counter bore 7 mm (.276 inch) minimum.

SERIES

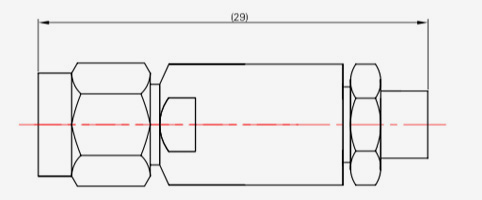

  • 2.4-JB2
    2.4-JB2
    Model Cable type
    2.4-JB2 SFT-50-2,670-086
  • 2.4-J125
    2.4-J125
    Model Cable type
    2.4-J125 125
  • 2.4-J230
    2.4-J230
    Model Cable type
    2.4-J230 MILFLEX230
